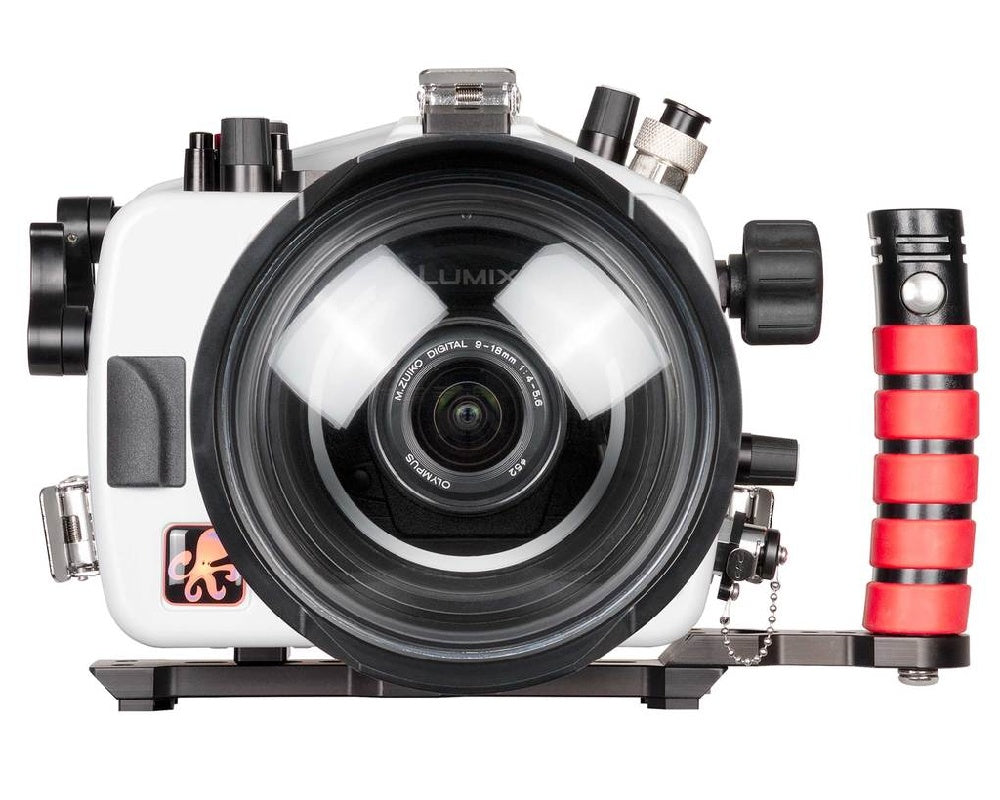

IKELITE UNDERWATER HOUSING 200DL FOR PANASONIC LUMIX GH5, GH5S

Capture sharp, detailed images at depths as great as 200' with IKELITE UNDERWATER HOUSING 200DL FOR PANASONIC LUMIX GH5, GH5S. An Ikelite bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Using the optional #46031 TTL circuit and the hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

SPECIFICATIONS:

• 200' (60m) depth rating
• Compatible with DL system lens ports
• Controls are provided for all important camera functions; Controls are not provided for Diopter Adjustment Control, Rear Control Dial, or Mode Dial Lock. Mode Dial must be un-locked prior to installation for use underwater
• 1/4-20 thread base mounts with 3.5" spacing
• Near neutral buoyancy in freshwater
• Actual buoyancy varies depending on the choice of lens and port
• 1 lb (2.3 kg)
• 2 x 7.1 x 6.5" (234 x 180 x 165 mm)

Construction Details

• Made by hand in the USA from corrosion-resistant polycarbonate and ABS plastic blend
• White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above water's surface

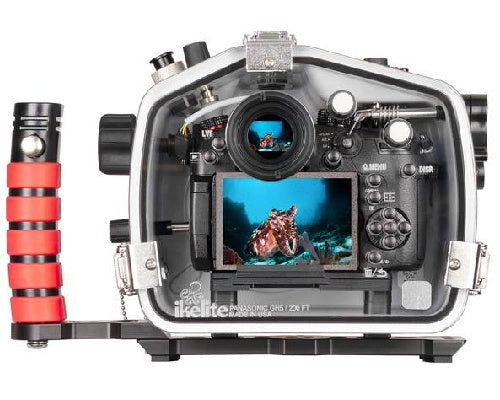

• Clear in back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
• Open-groove design suspends rear O-ring in a natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
• The camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access

Strobe Connection and Operation

• Use of external strobe highly recommended for color-correction and adequate brightness, and basically essential once you descend further than 15-20' underwater
• Strobe restores hues that get absorbed by water, so your images are vibrant and accurate
• Try to stay no more than 3-4' away from the subject to preserve natural colors in images

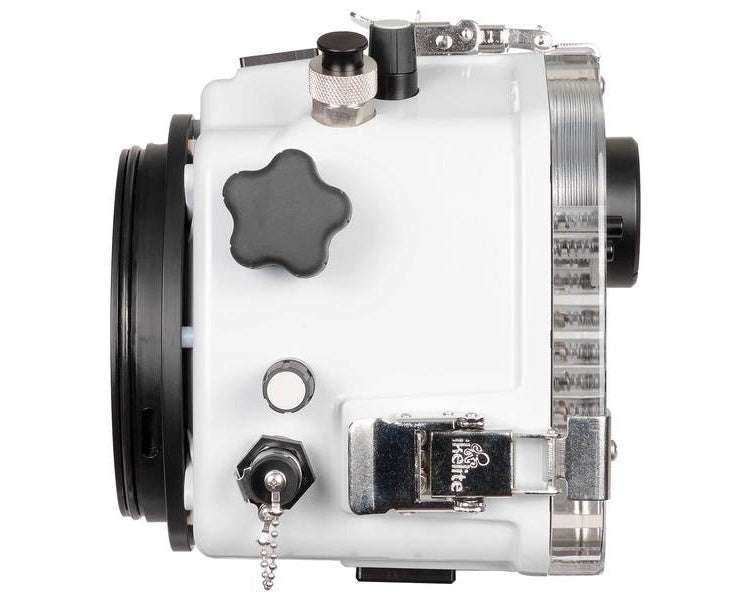

• Ikelite ICS-5 bulkhead connector with manual hot shoe connection enables reliable electrical triggering of optional, external strobes
• Using optional #46031 TTL circuit and hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only

 Controls and Handling

• Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers
• Controls afford access to all camera functions except for diopter adjustment control, rear control dial, and mode dial lock
• Mode dial must be unlocked prior to installation in housing to enable use of underwater
• Extra-large, soft-touch zoom knob works with universal zoom gear system
• Control symbols are laser-etched into the back of the housing so they won't fade or be rubbed off over time
• Supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling while offering an attachment point for an optional lighting arm
• Nearly neutral buoyancy in freshwater. Precise buoyancy varies depending on the choice of lens and port

Lens Port System

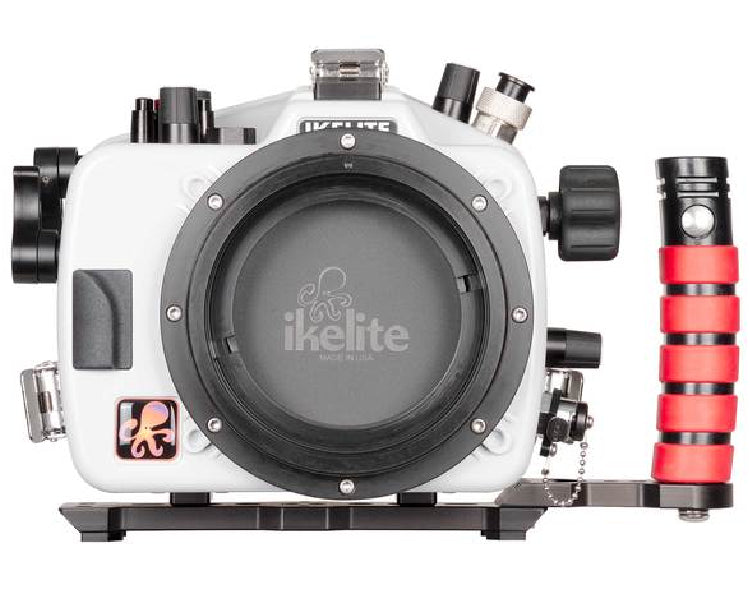

• Ships without a required lens port
• Accepts all Ikelite Dry Lock (DL) series dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
• DL port system accommodates lenses with large diameters and provides added security against leaks at the surface, thanks in large part to included vacuum valve for checking watertight integrity before dive
• Pump required in order to remove excess air and actually create a vacuum
