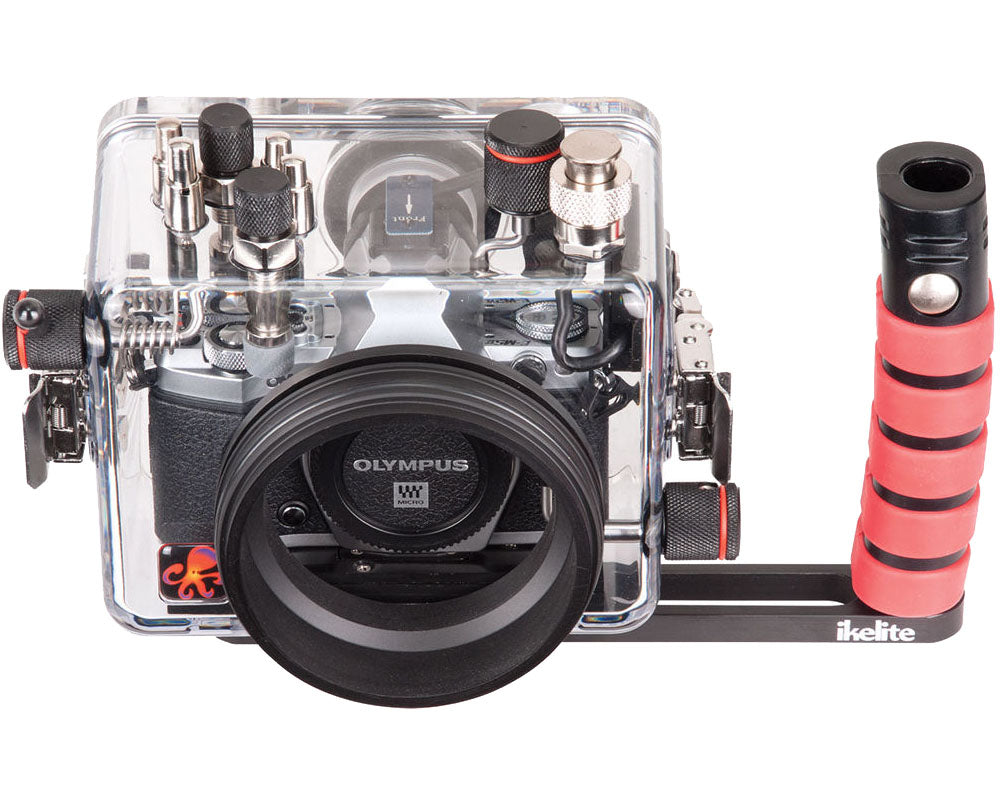

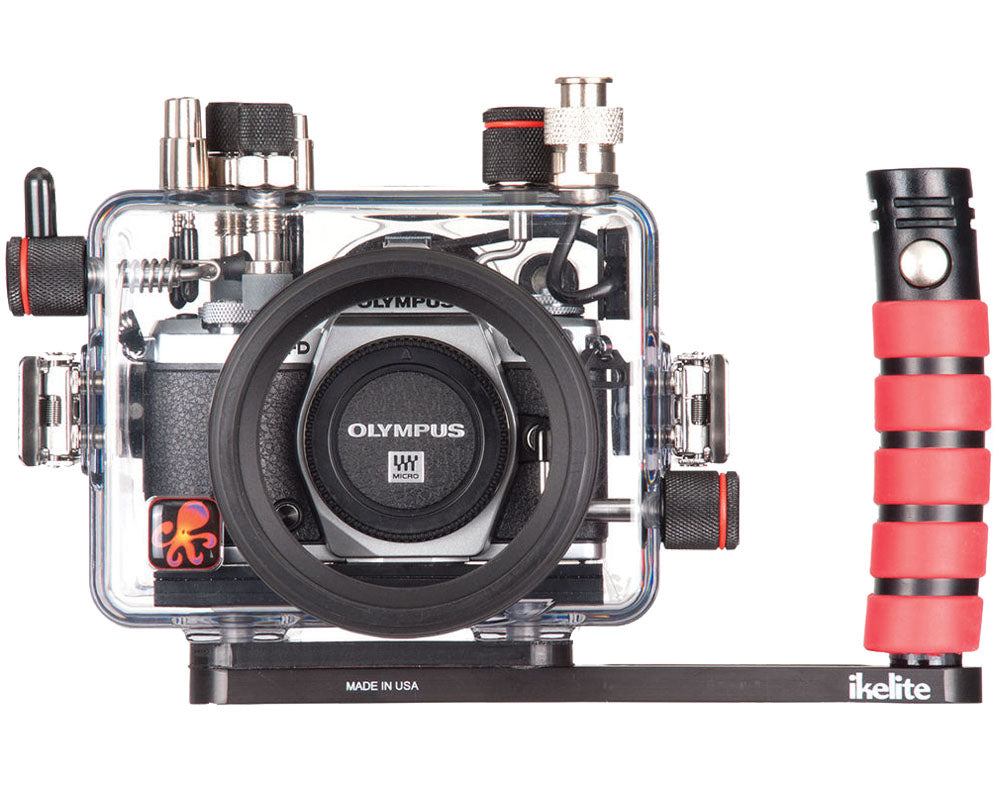

IKELITE UNDERWATER HOUSING 200DLM/A FOR OLYMPUS OM-D E-M5 MARK II

Capture images and Full HD video at 200' beneath the surface with IKELITE UNDERWATER HOUSING 200DLM/A FOR OLYMPUS OM-D E-M5 MARK II. It has built-in, proprietary circuitry and an Ikelite bulkhead strobe connector, allowing for TTL exposure with optional, external Ikelite DS Substrobes attached via sync cord. Non-Ikelite strobes are compatible in manual mode. Mechanical controls afford access to all important camera functions.

Construction Details

• Depth rating: 200'
• Made from corrosion-resistant polycarbonate, which is clear to allow you to monitor the O-ring seal and maintain a full view of the camera
• Designed, made by hand, and tested in the USA
• Made as compact as possible to minimize bulk, strain, and drag in the water

Strobe Connection and Operation

• Built-in, proprietary circuitry, and an Ikelite bulkhead strobe connector enable TTL exposure with optional, external Ikelite DS Substrobes attached via sync cord
• Non-Ikelite strobes are compatible in manual mode
• In order to keep housing as compact as possible, attachment of on-camera flash is not possible--but sync cord connection makes use of camera's flash unnecessary
• By not requiring the camera's flash to fire, sync connection eliminates shutter lag caused by the camera's flash recycling and conserves battery life
• Heat build-up inside the housing is reduced, as well, since the camera's flash remains inactive
• Sync cord method also eliminates problems of signal interference, inconsistent exposure/weak transmission, and false triggering by other light sources
• Sync cords available for most popular strobes from Ikelite, Sea & Sea, Inon, and Nikonos

Strobe Compatibility

• Ikelite DS series substrobes: DS50 (above serial number 70000), DS51, DS125 (above serial number 5000), DS160, DS161, DS200 (above serial number 7163)
• Third-party strobes in manual mode only

Controls, Handling, and Operation

• Mechanical controls, including push-buttons, knurled dials, and a lever, afford access to all camera functions except rear touch screen, Fn1 button, mode dial lock, diopter adjustment dial, and external flash connector
• Controls are placed right at your fingertips
• Symbols are laser-engraved into the back of housing so as not to peel off or fade, even through years of use

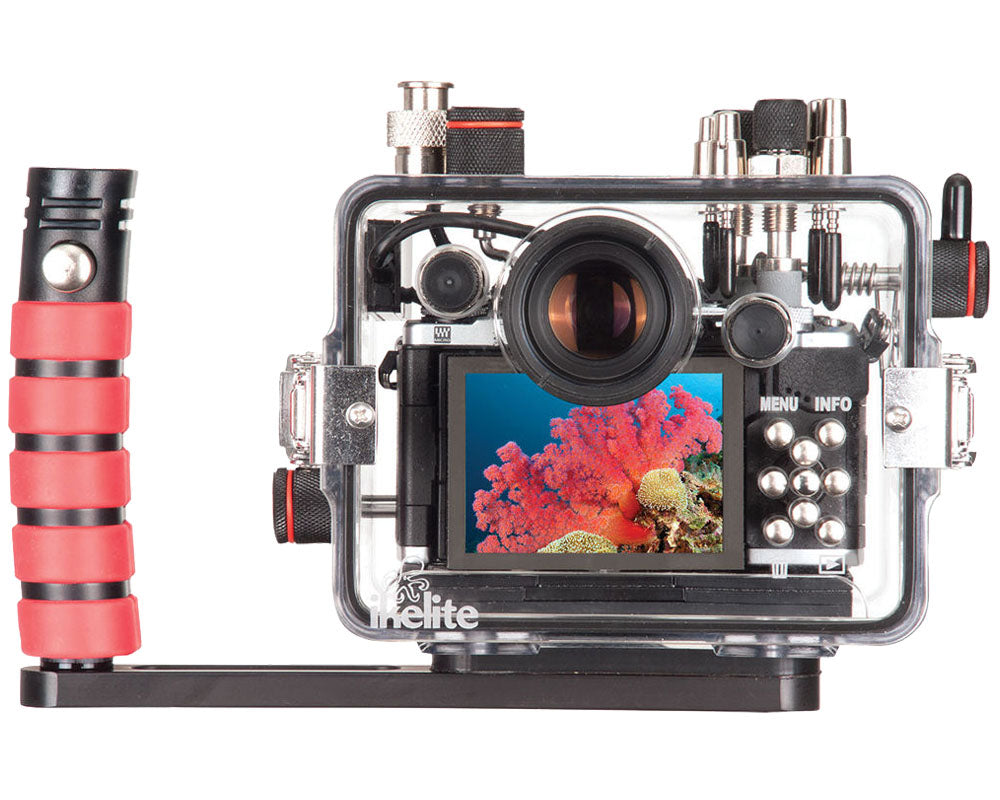

• The camera's large, bright LCD monitor is viewable edge-to-edge through the back of the housing
• Built-in magnifying viewfinder includes special optics to provide a clear view of the camera's EVF when wearing a dive mask
• Compatible with Ikelite's optional Straight and 45° Magnified Viewfinders
• When above the surface, you can use the camera's Wi-Fi connectivity to transfer images while the camera is still in housing
• Supplied with aluminum mounting tray with a quick-release handle, which improves balance and gives you an attachment point for an optional lighting arm
• The handle is curved slightly to fit the natural curvature of your hand for comfort
• Tray and handle can be removed easily for storage or travel
• Optional Tray with Dual Handles can further increase ease of use while providing a connection point for an additional flash or video light

Lens Port

• Shipped without a required lens port
• Accepts one of several interchangeable ports for various lenses
• For compatibility, see Port Chart linked above
• Each port simply slides on and is secured via three thumb screws
• Dome and flat ports are available with optical acrylic and glass front elements, respectively
• Available ports fit various zoom, macro, and wide-angle lenses from Olympus and Panasonic
