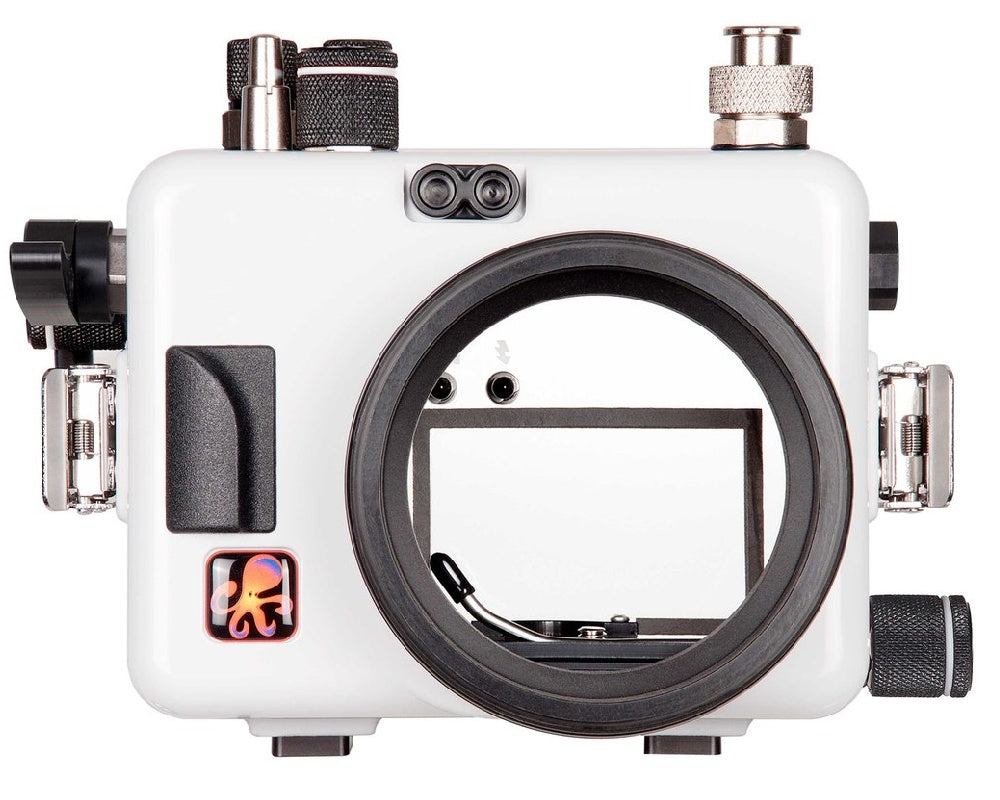

IKELITE UNDERWATER TTL HOUSING 200DLM/A FOR SONY ALPHA A6300

Capture images and video at depths up to 200' beneath the surface with IKELITE UNDERWATER TTL HOUSING 200DLM/A FOR SONY ALPHA A6300. Built-in, proprietary circuitry, and an Ikelite bulkhead connector allow for TTL exposure with optional, external Ikelite DS Substrobes. Non-Ikelite strobes are compatible in manual mode. Dual fiber-optic cable ports built into the housing provide an alternate method for strobe attachment.

SPECIFICATIONS:

• 200 ft (60m) depth rating
• Compatible with DLM system lens ports
• Controls for all important camera functions
• Ikelite flash bulkhead connector with built-in TTL circuitry
• Two 1/4-20 threaded tray mounts with 3-inch (76mm) spacing
• Ikelite bulkhead connector with built-in TTL circuitry
• Slightly negative buoyancy in freshwater
• Actual buoyancy varies depending on the choice of lens and port
• 1 lb (1430 g)
• 3 x 7.5 x 5.2" (160 x 191 x 132 mm)
• ABS-PC, acrylic, and acetyl construction

Construction Details

• Features a depth rating of 200'
• Close two double-passivated, stainless steel locking lid snaps to see the o-ring form a watertight seal
• Front-loading camera mounting system makes installation and removal a breeze
• The camera mounting plate allows for easy access to the battery and memory card and features a standard 1/4"-20 mounting point for attachment to an optional tripod topside
• Constructed by hand in the USA from corrosion-resistant ABS and polycarbonate blend. Off-white with a touch of light gray on front, sides, top, and bottom, but clear in back to allow you to monitor the O-ring seal and rear camera controls
• Off-white/light gray color reflects sunlight to keep the camera cool when shooting at or above water's surface, and also offers better contrast for improved viewing of the camera, LCD, and O-ring seal
• The design eliminates the need for an O-ring groove or channel that can trap sand, dirt, or debris, while also preventing accidental twisting or stretching of O-ring
• Slightly negative buoyancy in freshwater
• Actual buoyancy varies depending on the choice of lens and port

Strobe Connection and Operation

• Housing provides a direct electrical connection to the camera's external hot shoe
• Integrated circuitry and bulkhead sync cord connector enable TTL exposure with optional, external Ikelite DS Substrobes
• The circuit features model-specific encoding, which has been fine-tuned to Sony's a6300 flash protocol for the most accurate exposure possible
• Circuit powered by strobe, so there's no maintenance required and no batteries to change
• Exposure compensation in TTL mode supported via camera's built-in control
• SEA&SEA, INON, and Nikonos strobes may be used with the required sync cords in manual exposure modes only, but will still benefit from improved battery life and faster recycle times
• Threaded bulkhead connector prevents accidental sync cord detachment during use
• The bulkhead connection has been moved to the top of the housing to keep cords out of your way and reduce strain on ends
• Dual fiber-optic ports built into housing provide an alternate method for strobe attachment using optional cables from most major manufacturers
• The camera's built-in flash is suitable for firing an external strobe via fiber-optic connection, but not for lighting a photo underwater
• The fiber-optic method bypasses TTL functionality and reduces battery life by requiring the use of the camera's built-in flash
• To preserve the natural colors of subjects and environments in images, try to stay within arm's reach of what you're shooting. The further away you go, the more light is absorbed by water--which acts like a big blue/green filter

Strobe and Cord Compatibility

Strobes:

• Ikelite DS50, above serial number 70000
• Ikelite DS51
• Ikelite DS125, above serial number 5000
• DS160
• DS161
• DS200, above serial number 7163
• Various non-Ikelite strobes (Sea & Sea, INON, and Nikonos type) are also compatible, though in manual mode only

Sync Cords:

• Ikelite-to-Ikelite TTL Sync Cord (TTL) #4103.51
• Ikelite-to-Ikelite TTL Dual Sync Cord (TTL) #4103.52
• Sea & Sea / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual) #4118.1
• Sea & Sea / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual)#4118.2
• Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) #4116.31
• Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) #4116.32

Fiber-Optic Cables:

• Ikelite #4501 Fiber Optic Coiled Cord
• INON Optical D "Non-wireless" L- type Connector
• Sea & Sea L-type Fiber Optic Cable #50107
• Olympus UW Fiber Optic Cable PTCB-E02
• Nauticam-to-INON Optical Fiber Cable #26211
• Nauticam-to-Sea & Sea Optical Fiber Cable #26212

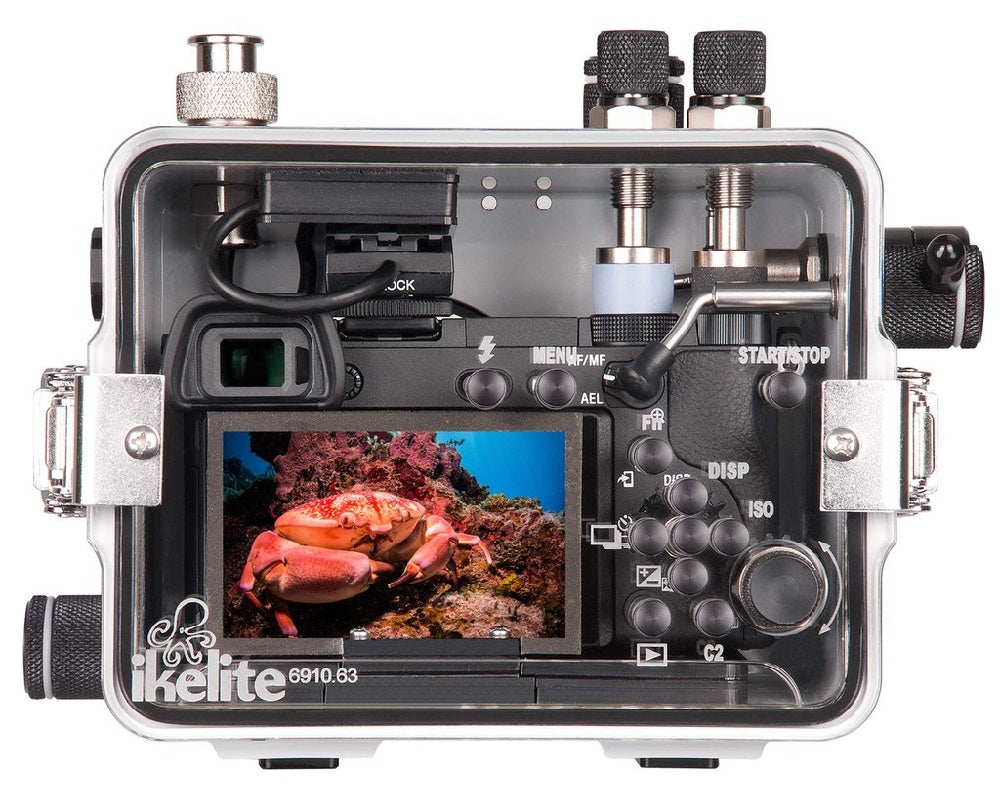

Controls and Handling

• Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and a lever, afford access to virtually all camera functions
• Controls are large enough to be operated easily while wearing thick gloves
• Whenever possible, controls located in the same configuration as they are on camera to replicate muscle memory and familiarity you've developed with the camera
• Control symbols laser-engraved into the back of housing won't peel off or fade with time
• The camera's large, bright LCD screen can be viewed edge-to-edge through the back of housing
• Two 1/4"-20 threaded mounting points for connection of optional tray with handles, which provides additional balance/stability and attachment points for optional lighting arms

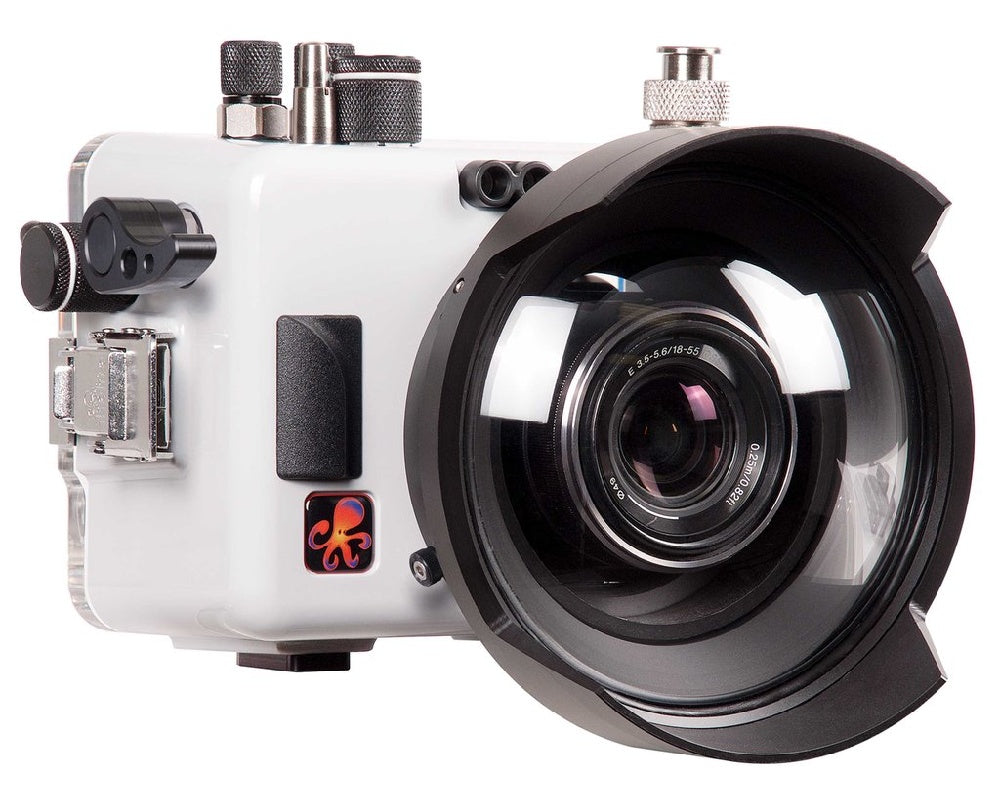

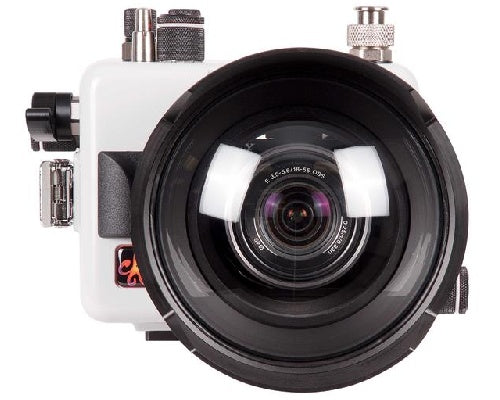

Lens Port System

• Ships without required lens port
• Accepts various optical-grade acrylic dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
• Changing ports is quick and easy--just press on and tighten three thumb screws
