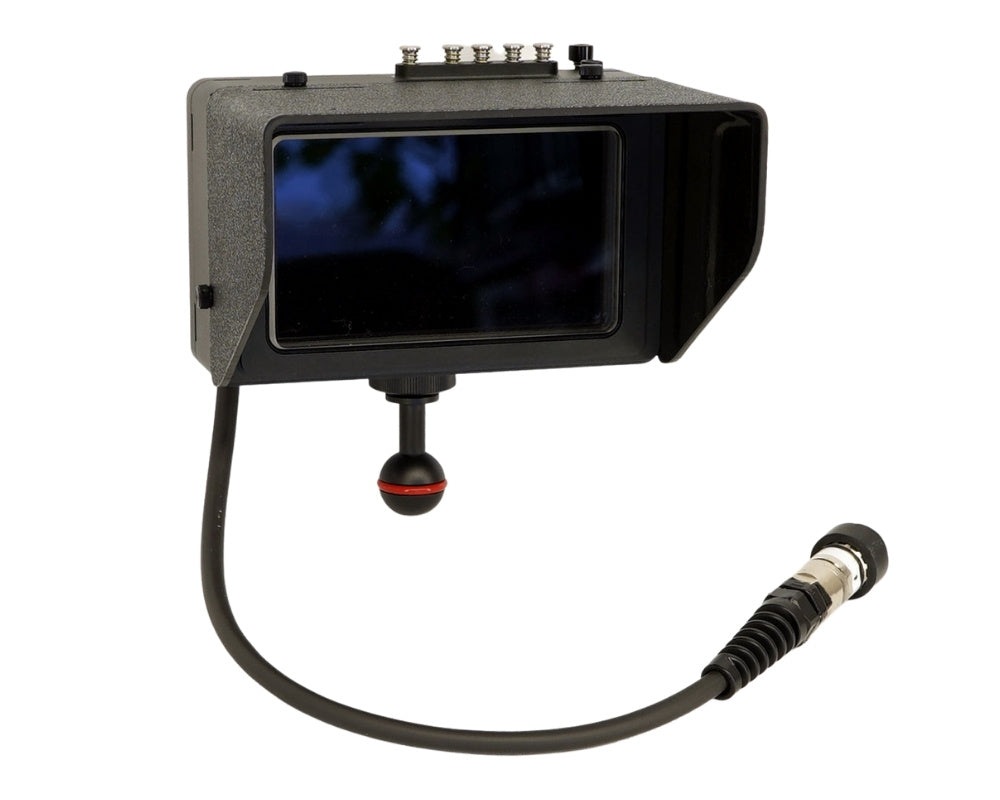

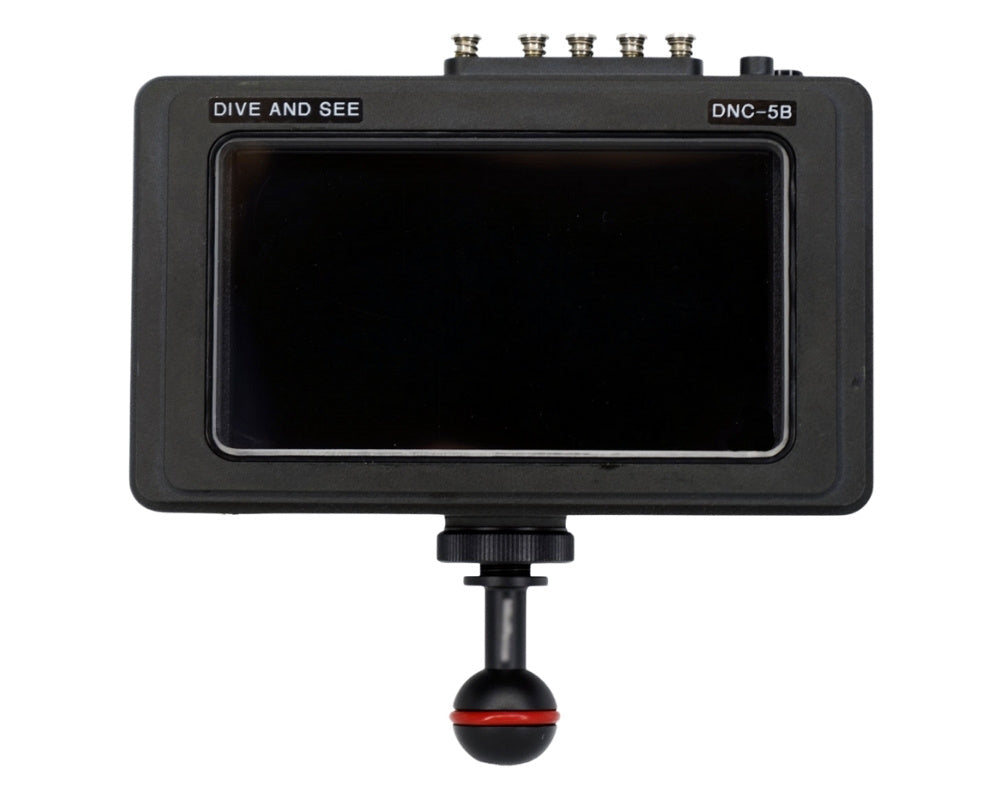

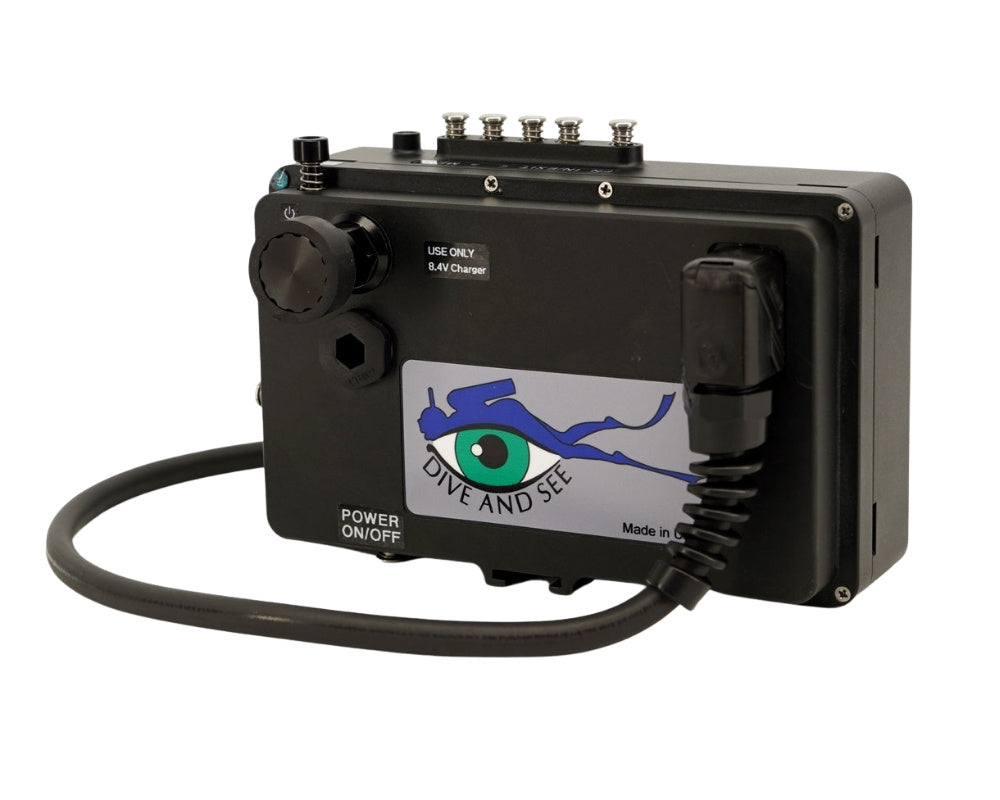

With the enhanced 600 cd/m2 back-light and a 1100:1 color contrast ratio, this Video Camera Monitor produces a crystal clear picture and shows colors vividly even under sunlight. A large, manufacturer sealed, bright external DNC-5B monitor gives you the ability to frame your shots and focus with great precision, the flexibility to swivel and tilt to any angle for your convinient use.

Color temperature function allows you perfectly match a color of the screen and your Video or DSLR camera screen. Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance.

  • Screen resolution: 1920x1200, Full HD resolution

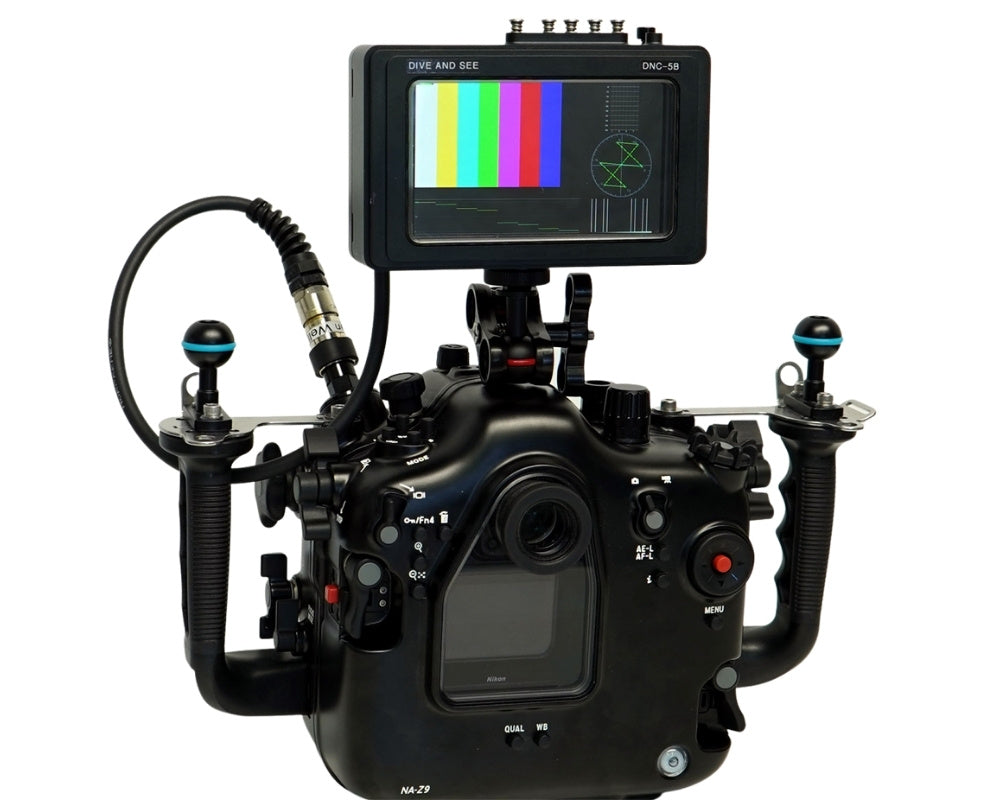

  • Video Monitor fits and works with all brands of the underwater housings
  • Built in battery gives you 5 hours of NON stop usage time
  • Set includes: Sealed monitor, Battery charger, Monitor Hood, Hot shoe Ball Mount, & Bulkhead connector per your choice
  • Compact and Rugged design, dimensions: 163 x 114 x 87 mm, Depth Rating -100 meters (150 m is a custom option)
  • One user-programmable function button
  • Brightest available on the underwater market – 600 nits
  • Reverse polarity protection circuit


DNC-5B(H1) - this model has only HDMI input

DNC-5B(H2) - this model has HDMI input and additional HDMI output loop through Bulkhead connector for Live streaming video up to 4K


  • Built-in functions of DNC-5B include:
  • Focus peaking
  • Exposure
  • Vectorscope, Waveform
  • False color
  • Histogram
  • HDR
  • R/G/B only
  • Color bars


  • Screen Size: Diagonal 5.4" (16:9)
  • Display panel: IPS LED
  • Physical Resolution: 1920 x 1200
  • Video signal input: HDMI 2.0
  • Signal Input: supports 1080/ 24i/ 24p/ 25i/25p/ 30i /30p/ 50i/ 50p/60i/ 60p; 720/ 50p, 720/ 60p; 480, 480p; 576i, 576p
  • Signal Input: supports 1080/24psf/25psf;50i/50p;60i/60p;720/50p/60p;480i; 576i
  • View Angle: 160(H) 160(V)
  • Brightness: 600 cd/m2
  • Contrast Ratio: 1100:1
  • Depth Rating: 100 meters
  • Weight: 3.1 lbs. / 1.4 kg
  • Size: 6.4 x 4.4 x 3.4 inch / 163 x 114 x 87 mm
  • Buoyancy: negative 300 g in fresh water
  • Battery Life: 5 hours continuous
  • Battery recharges time: 3h 30min
