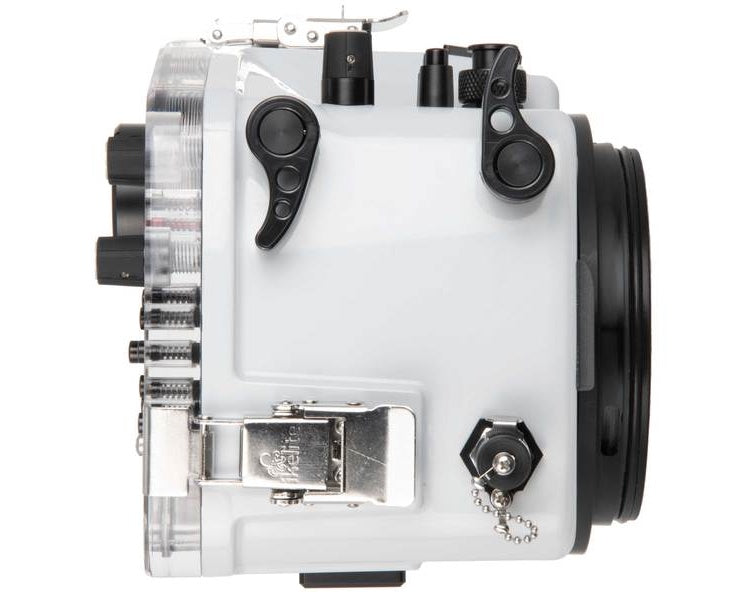

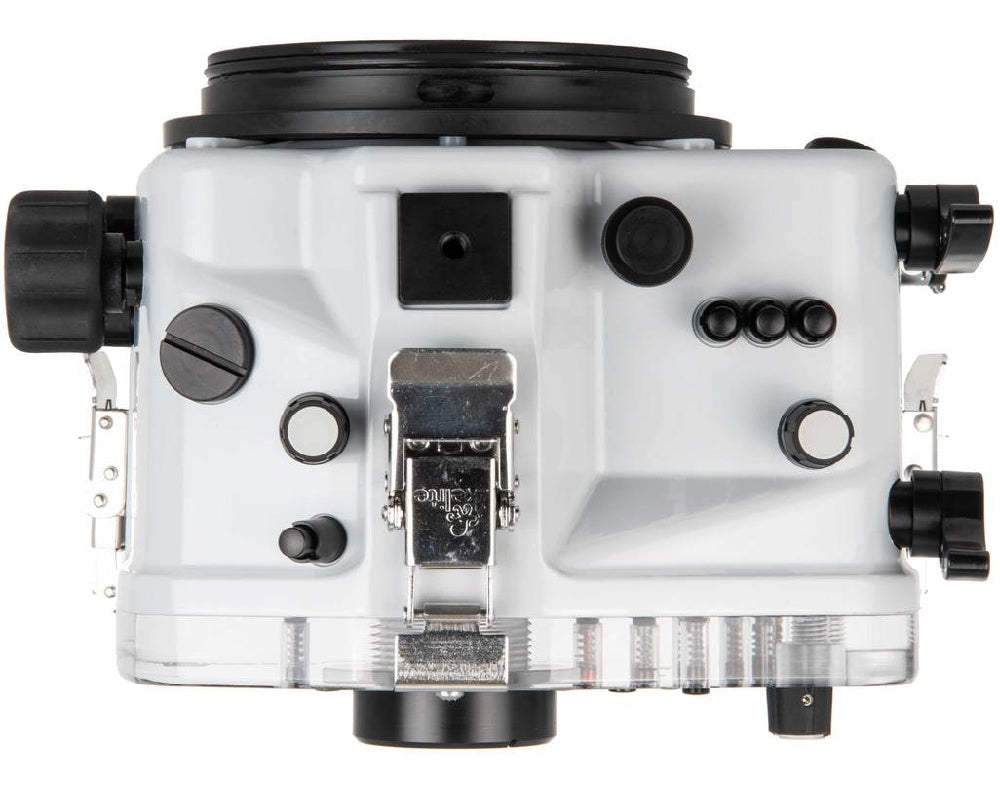

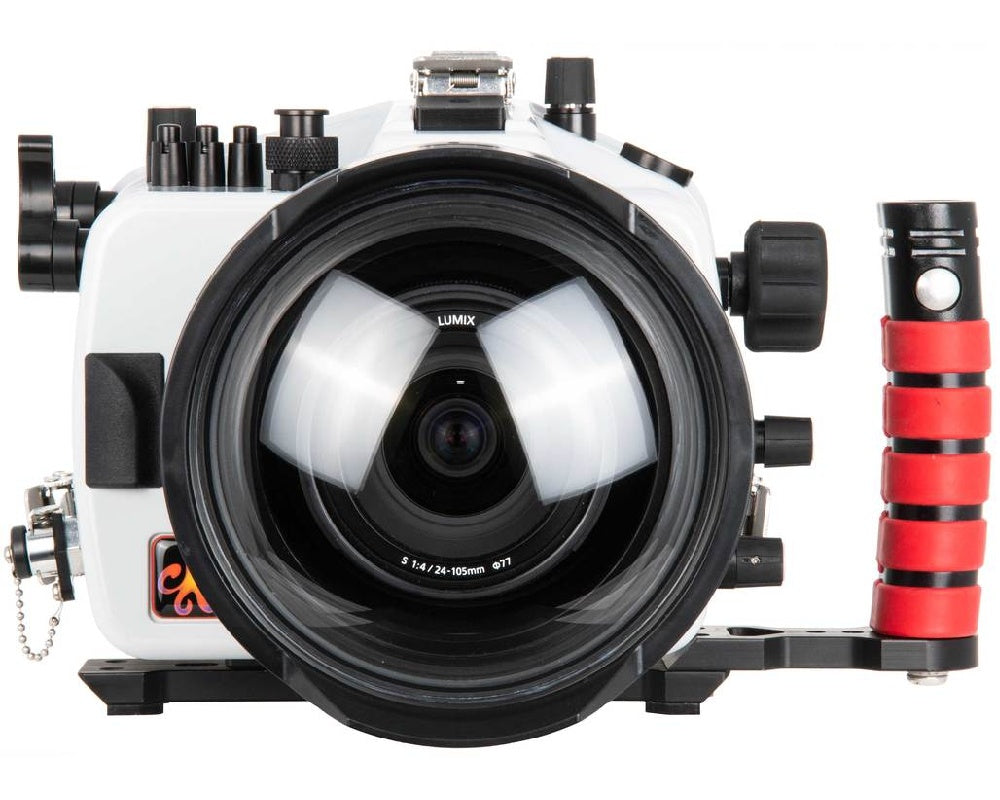

IKELITE UNDERWATER HOUSING 200DL FOR PANASONIC LUMIX DC-S1, DC-S1R

Capture sharp, detailed images at depths as great as 200' with Ikelite's IKELITE UNDERWATER HOUSING 200DL FOR PANASONIC LUMIX DC-S1, DC-S1R. An Ikelite bulkhead connector with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Using the optional #46032 DL3 DS Link TTL converter and the hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will work in manual mode only.

SPECIFICATIONS:

• 200' (60m) depth rating
• Compatible with DL system lens ports
• Controls are provided for all camera functions except Status LCD backlight button, Drive mode dial, Operation lock lever, Monitor lock lever, Touch screen, Front dial, Joystick (Center may be pressed), Focus mode lever, Fn1, Fn2, Fn lever, Preview, V.MODE, or Diopter adjustment dial; Front dial functions may be accessed using the rear and control dials
• 1/4-20 thread base mounts with 3.5" spacing
• Slightly positive buoyancy in freshwater
• Actual buoyancy varies depending on the choice of lens and port
• 7 lb (2.15 kg)
• 2 x 7.2 x 6.5" (234 x 183 x 165 mm)

Construction Details

• Made in the USA from corrosion-resistant polycarbonate and ABS plastic blend
• White on the front, top, sides, and bottom to reflect sunlight and keep the camera cool when shooting on or above water's surface

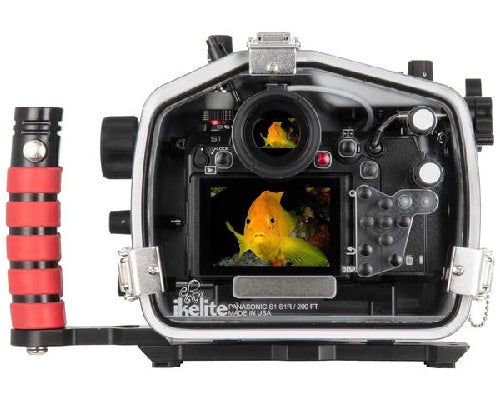

• Clear in back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls
• The camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access
• The mounting plate has a 1/4"-20 tripod mount for surface use

Strobe Connection and Operation

• Ikelite ICS-5 bulkhead connector with manual hot shoe connection enables reliable electrical triggering of optional, external strobes
• Using optional #46032 TTL circuit and the hot shoe will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will work in manual mode only

Controls and Handling

• Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers
• Controls afford access to all camera functions except for status LCD backlight button, drive mode dial, operation lock lever, monitor lock lever, touch screen, front dial, joystick (center may be pressed), focus mode lever, Fn1, Fn2, Fn lever, Preview, V.MODE, or Diopter adjustment dial; front dial functions may be accessed using the rear and control dials
• Extra-large, soft-touch zoom knob works with universal zoom gear system
• Control symbols are laser-etched into the back of the housing, so they won't fade or be rubbed off over time
• Supplied aluminum tray with a left-hand quick-release grip affords improved balance and handling while offering an attachment point for an optional lighting arm
• Slightly positive buoyancy in fresh water; precise buoyancy varies depending on the choice of lens and port

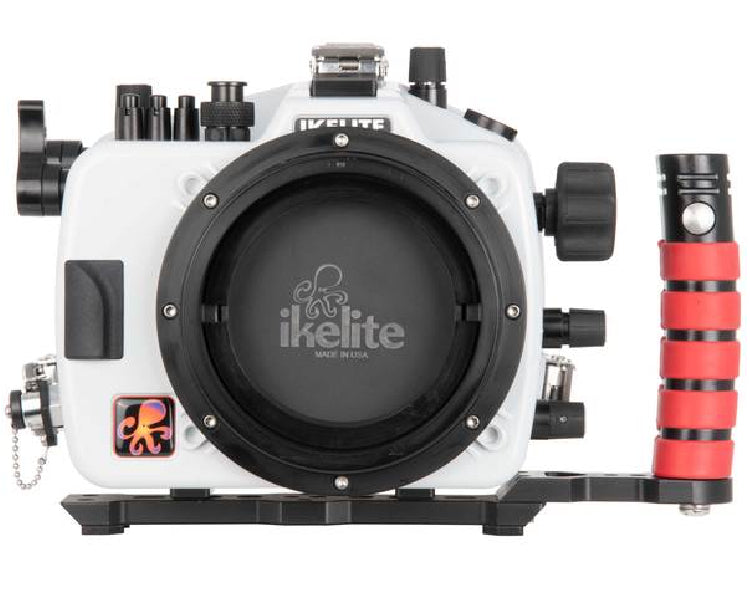

Lens Port System

• Ships without a required lens port
• Accepts all Ikelite Dry Lock (DL) series dome and flat ports for a broad array of zoom, macro, and wide-angle lenses
• Port for pre-dive vacuum check pump (pump and gauge sold separately)
