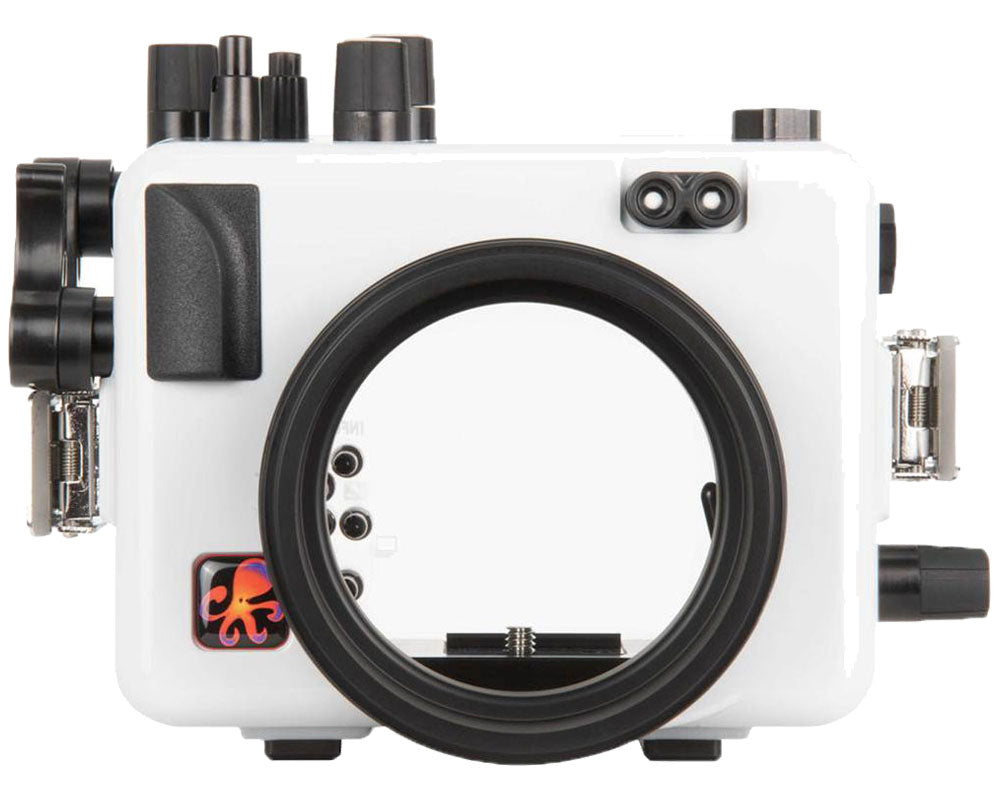

IKELITE UNDERWATER HOUSING 200DLM/A FOR CANON EOS M6 MARK II
SKU:
With your IKELITE UNDERWATER HOUSING 200DLM/A FOR CANON EOS M6 MARK II, you can capture brilliant images of the undersea world at depths as great as 200'. Dual fiber-optic ports are provided for external strobes, and ergonomic mechanical controls afford access to virtually all camera functions, including extendable levers for the shutter and AF-ON buttons. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and an ABS plastic blend. It is white on the front, top, sides, and bottom, but clear in the back to allow you to monitor the O-ring seal and maintain your view of the camera's rear controls. An optional aluminum tray with a quick-release grip or two will afford improved balance and handling while offering a way to attach optional lighting arms.
Construction Details
- Depth rating: 200'
- Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
- Clear in the back to allow you to monitor the O-ring seal and camera
- Two double-passivated, stainless steel locking latches are virtually unbreakable and make it easy to open and close the housing
- Rear O-ring seal design and placement prevent accidental twisting or stretching
- 1/2-20 threaded accessory port on the side of the housing allows for the easy installation of an optional Vacuum Kit (#47012), which will allow you to confirm the integrity of the watertight seal before diving
- The camera is installed and removed through the front of the housing
- Mounting plate allows for secure camera placement and does not need to be removed for you to access the battery compartment or memory card slot
- Mounting plate has a 1/4"-20 threaded hole for connection to a tripod
Controls and Handling
- Large, ergonomic, mechanical controls, including push buttons, dials, and levers, afford access to all camera functions except MF/AF switch, flash pop-up switch, rear dial rotation
- Most control dial functions are accessible via the up/down/left/right buttons
- Updated, curved shutter lever on the side is more sensitive and ergonomic than the levers on many previous housings
- Optional Shutter Trigger Extension (#4077.93) can be added on to allow for easy shutter activation without removing your hand from a grip
- Laser-engraved control symbols won't come off or fade with time
- Supports camera LCD tilt
- Two 1/4"-20 threaded mounts on the bottom of the housing allow for connection to an optional tray with grips, which improves balance and handling while adding attachment points for lighting arms
Lens Port
- Ships without a required lens port
- Accepts various, interchangeable dome and flat ports for a broad array of lenses
- For complete compatibility details, see the port chart linked above
Strobe Connection and Operation
- Dual fiber-optic ports for external strobes, triggered by the camera's built-in flash
- Optional constant LED or other video light can be used instead of or in addition to a flash
