INON LF1000-S LED LIGHT
SKU:
MULTIPURPOSE POCKET WATER-PROOF LIGHT
Standard Beam With Two Power Setting
Maximum 1000 lumen and 30-degree coverage. 3 x AA operated compact and handy flashlight thanks to its parallel loading battery pack. Versatile multipurpose waterproof flashlight for various scenes.
Ideal lighting device for aiming or macro imaging thanks to carefully selected white LED chip producing quality light with enhanced color reproducibility and the color temperature 5000K.

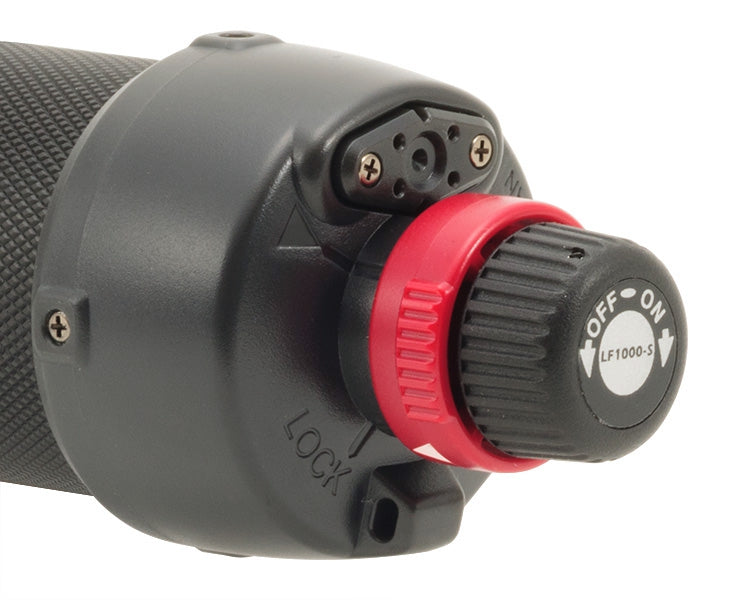

A simple yet durable rotary switch provides two power settings for various scenes; FULL with maximum intensity 1000 lumen or LOW with 250 lumens for longer burn time and usable on land as well (*). The rotary switch is equipped with Lock Ring to prevent accidental operation when the product is not in use.
(*) Only LOW mode is usable on land. FULL mode is not usable on land except for a brief function check.
Operated by easily obtainable 3 x AA batteries. Using compatible rechargeable batteries like "Eneloop" or "Eneloop pro" enables you to share the same battery charger with an INON strobe to enhance mobility and minimize your luggage space. The rated practical burn time (*) with "Eneloop pro" (BK-3HCC) rechargeable batteries, is approx. 50 minutes at FULL mode or approx. 235minutes (3hrs 55 min) at LOW mode.
(*) Average time to get half brightness compared to initial performance when using "Eneloop pro" batteries (Model code: BK-3HCC).
Standard packaged accessory of the LF1000-S includes "Wide Filter LF-S" to increase standard 30-degree beam coverage effectively at 30% more (approx. 40 degrees) and also soften the light itself. Other "Red Filter LF-S" and "Wide Red Filter LF-S" are also packaged to change color tone not to stimulate shy marine lives.
A wide range of optional accessories is available to install on a camera or camcorder.
The light head and battery box are made from seawater-resistant aluminum alloy. Simple yet durable construction with double O-ring for moving parts supports depth rating 120m. The independent rotary switch part is equipped with a stopper to prevent accidental flooding due to over-loosening.
Gold coating on electrical contacts of the light head and battery box provides maintenance-free circumstances under normal usage.

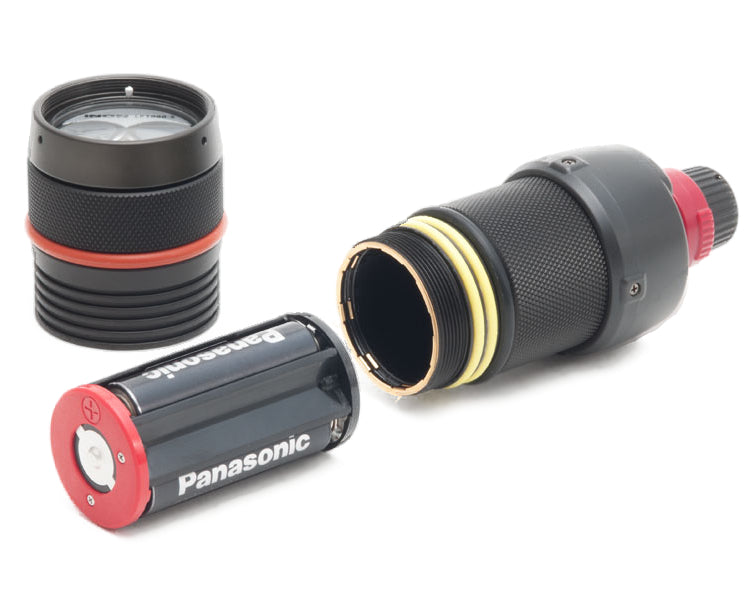

Interchangeable Light Head design enables you to use "LF1300-EWf", "LF800-N", "LF1100-W" Light Head benefitting for various applications and supports possible upgrade to future model as well.
SPECIFICATIONS:
- LED Components
- High-intensity power LED (Cree XM-L2"T6")
- Luminous Flux(*2)(*3)
- Full mode: approx. 1,000 lumen[“Eneloop pro” battery]
- Low mode: approx. 250 lumen[“Eneloop pro” battery]
- Beam Angle
- 30° [without a filter, and with packaged Red Filter LF-S]
- 40° [with packaged Wide Filter LF-S / Wide Red Filter LF-S]
- Color Temperature(*3)
- 5000K
- Usable Environment
- underwater [Full mode and Low mode]
- air [Low mode only]
- Run Time[air](*4)(*6)
- approx .180 minutes ["Eneloop" battery at Low]
- 225 minutes ["Eneloop pro" battery at Low]
- 215 minutes [Alkaline battery at Low]
- Run Time[underwater](*5)(*6)
- 40 minutes ["Eneloop" battery at Full]
- 185 minutes ["Eneloop" battery at Low]
- 50 minutes ["Eneloop pro" battery at Full]
- 235 minutes ["Eneloop pro" battery at Low]
- 60 minutes [Alkaline battery at Full]
- 205 minutes [Alkaline battery at Low]
- Compatible Battery
- AA"Eneloop"/"Eneloop pro" battery x 3 (*7)
- AA NiMH [good quality] x 3 (*8)
- AA Alkaline battery x 3
- Depth Rating
- 120m / 394ft (*9)
- Size diameter 46.7mm / 1.8in
- Length 132.1mm / 5.2in
- Weight (*10)
- [air] 258.0g / 9.1oz
- [underwater] approx. 105g / 3.7oz
- Working / Storage Temperature
- ±0°C–+30°C / 32°F–86°F
- LED Life Time - approx. 10,000 hours
- Material/Finishing
- Corrosion-resistant aluminum alloy / rigid almite,
- PBT, PC, optical glass, etc.
- Standard Accessory
- Red Filter LF-S
- Wide Filter LF-S
- Wide Red Filter LF-S
- Hand strap, INON grease
- EMC standards
- EN 55015:2006 + A1:2007,
- EN 61547:1995 + A1:2000
- CRF 47 FCC Part 15 [incidental radiator]
- AS/NZS CISPER 15:2006
(*1) Subject to change without prior notice
(*2) Nominal value calculated from an LED manufacture specification sheet.
(*3) Due to individual variability of LED, drive circuit or battery, etc., luminous flux, color temperature, or intensity may vary within rated specification.
(*4) Average time to get half brightness when continuously turning ON the product with below-listed batteries on land (approx. 20°C / 68°F).
- "eneloop" battery : Panasonic "eneloop", BK-3MCC, 1.2V, Min.1,900mAh
- "eneloop pro" battery : Panasonic "eneloop pro", BK-3HCC, 1.2V, Min.2,450mAh
- Alkaline battery : Panasonic "EVOLTA" LR6(EJ), 1.5V
(*5) Average time to get half brightness when continuously turn ON the product with below-listed batteries on underwater (approx. 25°C / 77°F).
- "eneloop" battery : Panasonic "eneloop", BK-3MCC, 1.2V, Min.1,900mAh
- "eneloop pro" battery : Panasonic "eneloop pro", BK-3HCC, 1.2V, Min.2,450mAh
- Alkaline battery : Panasonic "EVOLTA" LR6(EJ), 1.5V
(*6) Actual measured data by INON. The value may vary depending on product individual variability, battery manufacture/model, test condition.
(*7) "New generation" NiMH batteries carrying less self-discharging and heat-generating characteristic compared to "conventional" or "high-capacity" NiMH including batteries listed below have been confirmed compatible by INON INC. as same as recommended Panasonic "Eneloop"/"Eneloop pro" battery (BK-3MCC, BK-3HCC, BK-3HCD).
- Panasonic Corporation Model name: eneloop [recommended]/Model code: BK-3MCC
- Panasonic Corporation Model name: eneloop pro [recommended]/Model code: BK-3HCC, BK-3HCD
- SANYO Electric Co.,Ltd Model name: eneloop [recommended]/Model code: HR-3UTG, HR-3UTGA, HR-3UTGB
- SANYO Electric Co.,Ltd Model name: eneloop pro [recommended]/Model code: HR-3UWX
- Sony Corp. Model name: Cycle Energy Blue/Model code: NH-AA-2BKA, NH-AA-4BKA
- Panasonic Corporation Model name: Rechargeable Ni-MH (AA)/Model code: HHR-3MPS
- Maha Energy Corporation Model name: IMEDION/Model code: MHRAAI4
- GP Batteries International Ltd Model name: ReCyko+/Model code: 210AAHCBE
- ANSMANN AG Model name: maxE/Model code: 5030991, 5030992, 5035052
- Electrochem Automation Inc. Model name: NEXcell energyON/Model code: n/a (AA 2000mAh)
(*8) Some "conventional" or "high-capacity" NiMH rechargeable batteries have significant self-discharge and heat-generating characteristics resulting in difficulty to keep their performance during usage. We recommend using recommended batteries.
(*9) Without operating the "switch". INON has confirmed a depth rating of 70m/230ft including switch operation.
(*10) Including 3 x AA "eneloop" batteries.
