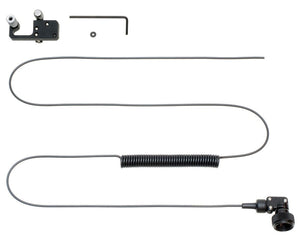

INON OPTICAL D SLAVE CABLE II TYPE L

An optical cable product to connect two INON strobes. A light-receiving part is attached to the front surface of the main strobe which is triggered by a camera signal to transmit the main strobe's flashlight to a sub strobe via optical fiber to fire the sub strobe simultaneously supporting the reliable operation and free from synch problem even in bright area. The Optical D Slave Cable is useful to expand your lighting system even camera's optical connector is limited. Two types are available depending on the main strobe to use.

Dedicated Optical D Slave cable to connect the "Z-240" / "D-2000" and compatible strobe in [Optical D Slave Cable Connection].

COMPATIBLE STROBE:

• Master Strobe (Main Strobe)
• INON Z-240, D-2000, D-2000S, D-2000W/Wn,
• D-180, D-180S, Z-220, Z-220F, Z-220S

The Z-330 / D-200 strobe is not usable as a master strobe.

• Slave Strobe (Sub strobe)
  • [Strobes compatible with pre-installed L-Connector.]
    • INON Z-330
    • D-200
    • S-2000
    • Z-240 Type4
    • D-2000 Type4
  • [Strobes requiring replacement of pre-installed L-Connector with optional "Sensor Plug Non-wireless".]
    • Z-240 Type3/Type2/Type1, D-2000 Type4/Type2/Tyep1
    • D-2000S, D-2000W/Wn
    • D-180, D-180S
    • Z-220
    • Z-220F
    • Z-220S
    • Z-22(*2)

(*1) This product is also attached on following diffusers for compatible master strobes and supplied "-0.5 Diffuser" / "-1.5 Diffuser" included in Z-240. The Z-240 shipped after July 2009 comes with -0.5 White Diffuser 2 only. Following compatible "diffusers" are available as optional accessories;

(*2)TTL operation (TTL slave) is available only for master strobe; [Z-220] / [Z-220F] / [Z-220S]. Optional [TTL Sensor Z] or [Focus Light Controller] is necessary to use the [Z-22] as a slave strobe.
