Secure and stable. Easy-to-use waterproof dive case using a sturdy buckle lock design to safely secure and protect your camera.

FEATURES:

• Waterproof to 60m (197ft) with the Dive Case.
• Glass lenses for better image quality.
• Sliding buckle design keeps the camera safe and secure.

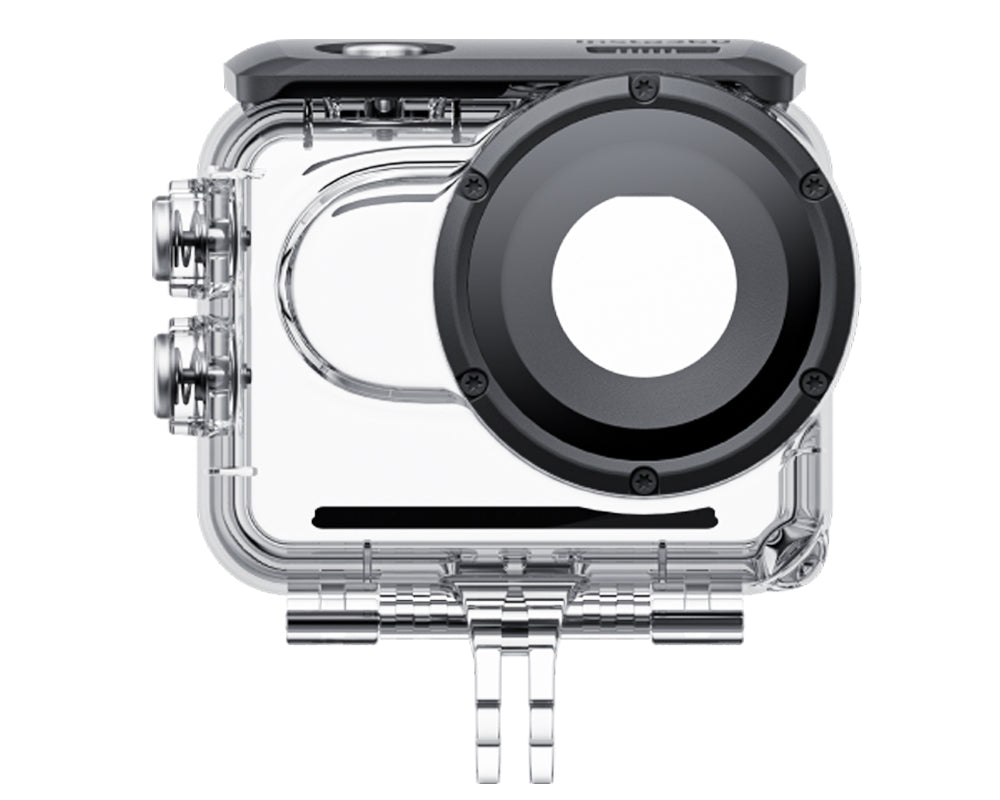

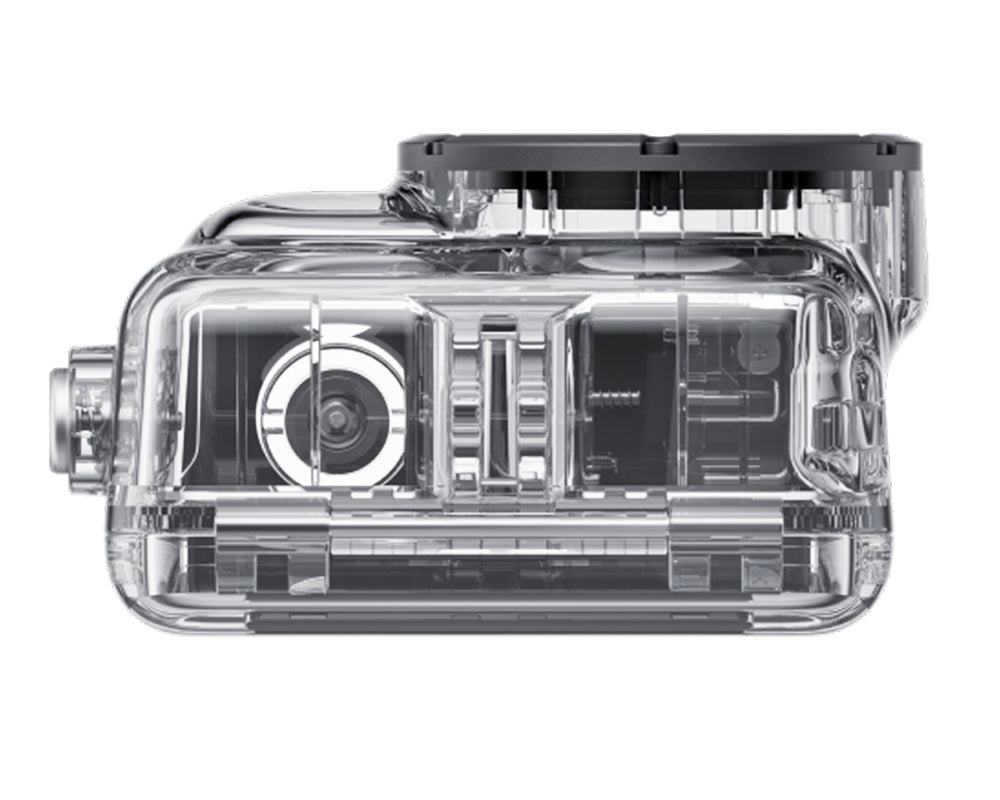

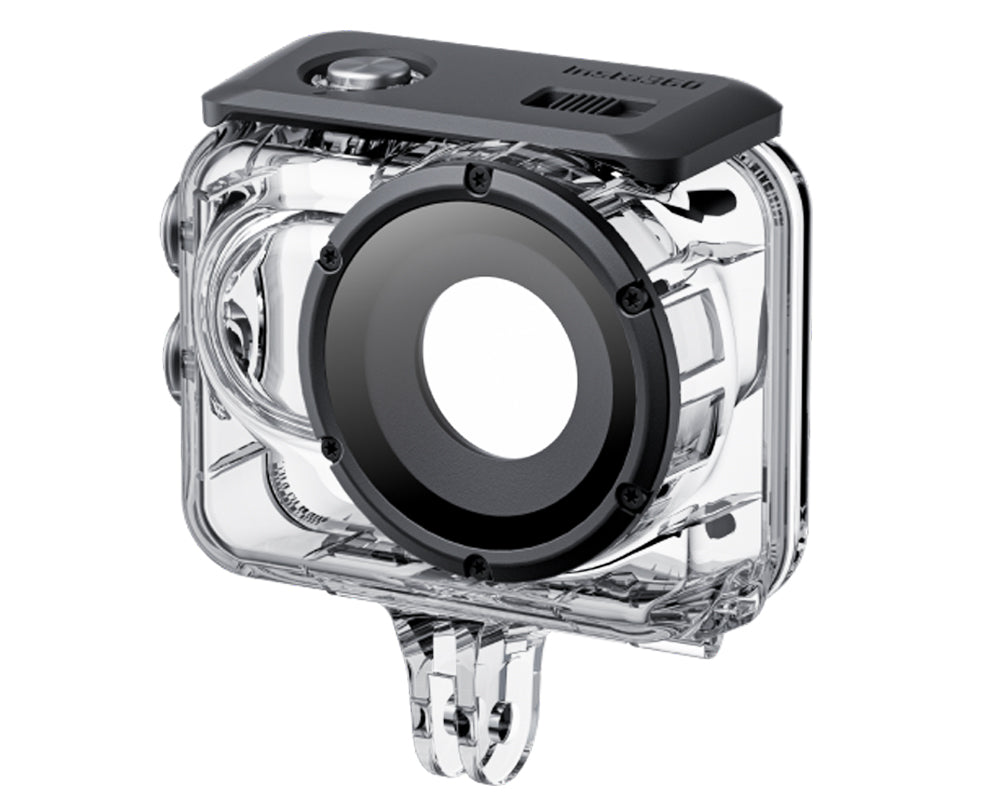

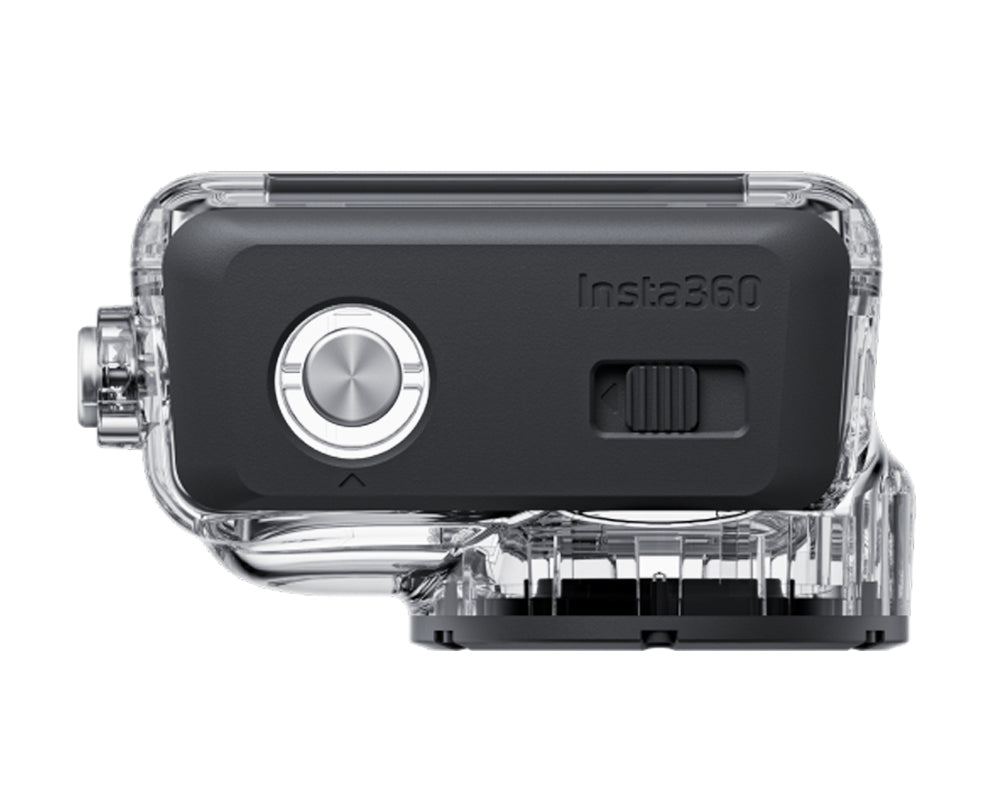

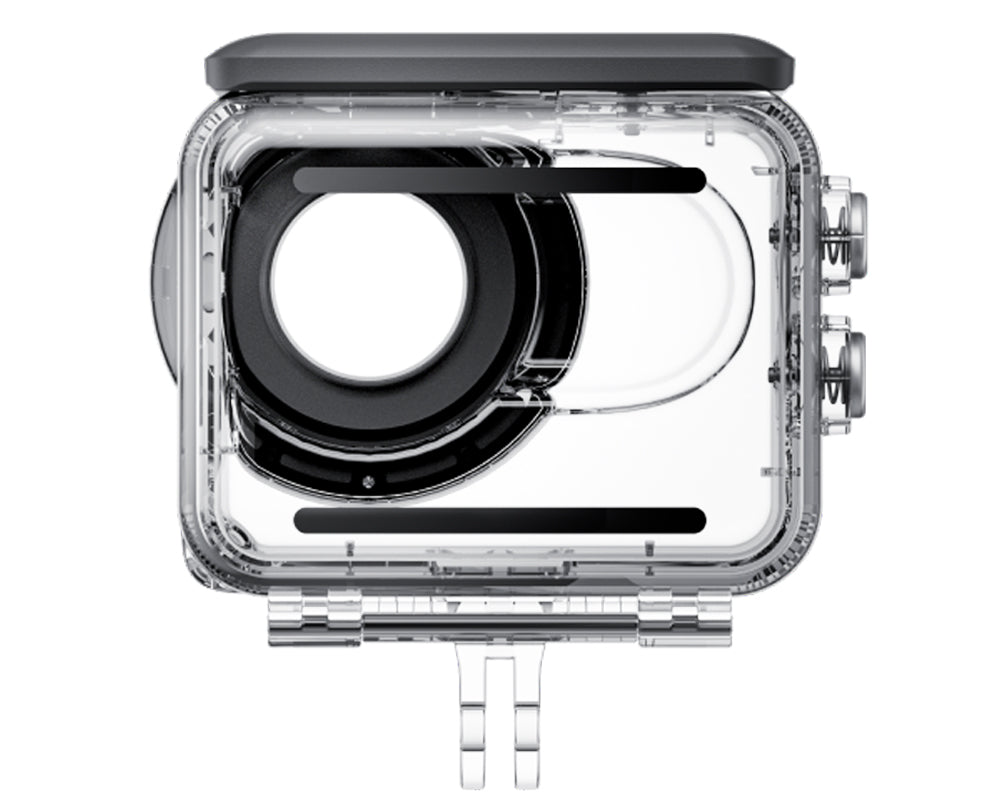

DIVE CASE

WATERPROOF TO 60 METERS (197FT).

SUPER CLEAR OPTICAL GLASS LENSES.

SECURE AND STABLE.

PERFORMANCE GUARANTEED.

IN THE BOX:

• 1 X Dive Case
• 1 X Thumbscrew Wrench
• 1 X Protective Pouch
• 1 X 1/4" Mount Adapter
• 1 X 1/4" Thumb Screw
• 6 X Anti-Fog Inserts
• 6 X Anti-Slip Ring

SPECIFICATIONS:

• Maximum Depth: 60m (197ft)
• Weight: 100g
• Size: 84×47.6×87.9mm (3.3×1.9×3.5in)

HOW TO USE:

• Open the Case
  • Hold the Dive Case with the buckle arrow pointing to your left. Push the lock lever to the left, lift the buckle, unhook it from the case, then open the Dive Case.
• Attach the Anti-Fog Inserts
  • Attach the anti-fog inserts, ensuring they are inserted correctly.

Note: When using third-party anti-fog inserts, ensure that the size is within 28×15×1.2mm. Inserts that are too large may cause water leakage and damage the camera.

• Insert the Action Pod and Camera
  • Insert the camera in the correct direction so the camera lens aligns with the Dive Case lens opening.

Note:

• Lock the touchscreen before using the camera underwater to prevent accidental presses.
• Take care not to scratch the camera lens during installation.

• Close the Case
  • Latch the buckle onto the case hook and press firmly until it clicks into place.

Note:

• Ensure the Dive Case is fully closed and the rubber seal is clean and free from dirt or dust.
• Keep the Dive Case lens clean for the best image quality.

• Attach the Anti-Slip Ring
  • Apply an Anti-Slip Ring to the screw points before connecting accessories such as the Floating Hand Grip.
• Connect with Floating Hand Grip or 1/4" Mount Adapter
  • Attach the Dive Case to the Floating Hand Grip or 1/4" Mount Adapter using the 1/4" Thumb Screw.

NOTES:

Before Using:

1. Read all instructions carefully before use. Improper use may damage the camera, battery, or other components.
2. Before each use, test the Dive Case for leaks without the camera installed:
   • Securely close the case and slowly immerse it in water.
   • Operate the buttons underwater for 2–3 minutes while checking for air bubbles.
   • Remove the case, dry it thoroughly, then check for water inside.
3. Ensure the rubber seal is clean, properly seated, and free from foreign objects before sealing.
4. Do not open or close the Dive Case in sandy, dusty, or dirty environments.
5. The Dive Case is not shock-resistant. Avoid strong impacts or excessive pressure.
6. Maximum diving entry height is 2m (6.56ft), and maximum drop protection is 1m (3.28ft).
7. Visible glue around the lens edge is normal and does not affect waterproof performance.

Maintenance:

1. Do not open the Dive Case while it is wet.
2. After use in seawater, remove the camera and soak the Dive Case in fresh water for at least 60 minutes, then rinse gently with tap water.
3. Keep the case closed while washing and dry it with a soft cloth. Do not use a hair dryer, clothes dryer, or stove.
4. Remove any sand before wiping the Dive Case to avoid scratching the surface.
5. Do not store the Dive Case in hot or humid environments, such as inside a parked vehicle.
6. Do not clean with soap, detergent, alcohol, gasoline, or other organic solvents.
7. Store the product in a dry, well-ventilated place.
