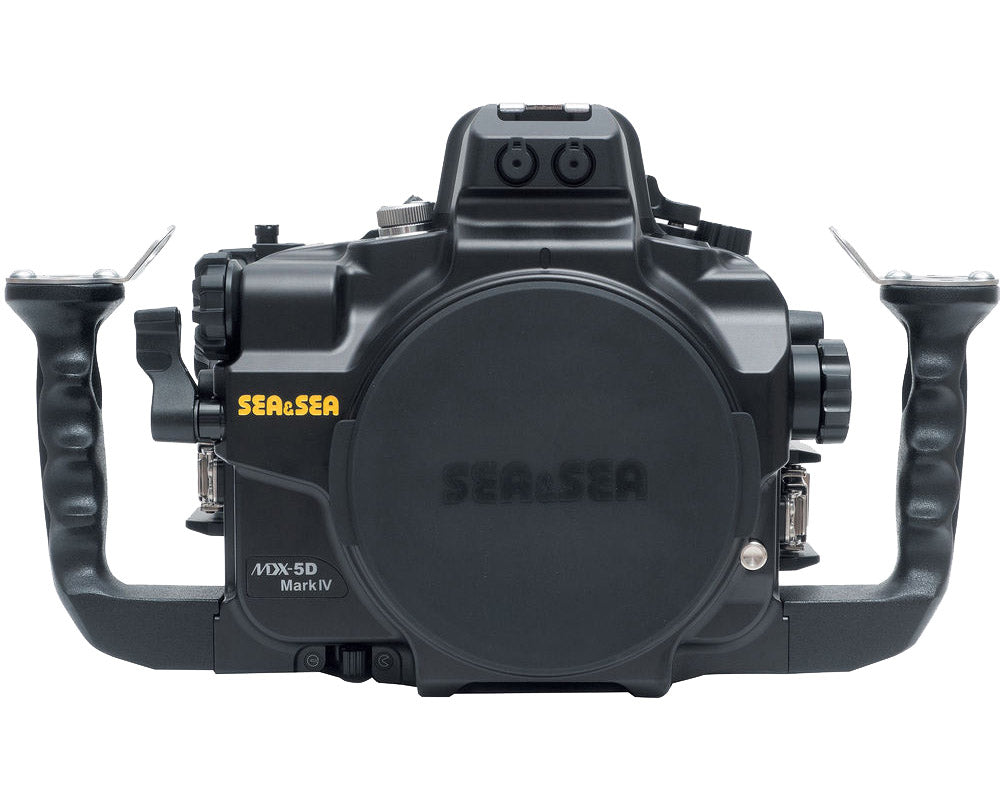

SEA & SEA MDX-5D MARK IV UNDERWATER HOUSING FOR CANON 5D MARK IV, CANON 5D MARK III
Important controls can be operated whilst holding the grips. Frequently used buttons such as ISO, AF Point Selection, and Multi-function Selection buttons are operated by external levers, allowing quick and accurate operation.
AF Start button is locked by pressing and turning the control.
AF Start Lever will remain pressed by pushing the lever forward.
The main command dial the quick control dial and others have a damper (spring) to provide secure operation. (Controls on the camera will not slip because of the damper).
The tension on the Shutter Release lever can be adjusted in 3 steps
The tension on the Shutter Release lever can be adjusted in 3 steps, by changing the location of the spring inside the housing. The distance to half-depress the shutter release can be adjusted in 2 steps, by changing the location of the plastic piece behind the shutter lever, inside the housing.
Compatible with Optical YS Converter/C
Equipped with two fiber-optic cable sockets for optional Optical YS Converter/C.
*Serial numbers YSC200094 and above are compatible. Serial numbers below YSC200094 are not compatible. The new firmware will be required.
- The Port Lock prevents the port from turning or loosening and the Port Lock lever is specifically located to avoid being unlocked accidentally.
- The housing is equipped with a lens-lock release button which makes it possible to change lenses easily, without opening the housing.
- The camera’s diopter adjustment dial can be operated from outside the housing. This feature is useful when two or more people with different eyesight use the housing.
- Pulling out the Focus/Zoom Dial gives sufficient room inside the housing to easily accommodate larger diameter lenses.
- All controls have luminescence stickers that glow in a dark environment.
- Equipped with the Optical Viewfinder 0.5x as standard. Other optional viewfinders such as the VF180 1.2x, VF45 1.2x, and Optical Viewfinder 0.8x can be used.
- Sync Cord 2-pin Connector enables the use of conventional hardwired Sync cable (Manual mode only).
- Equipped with two sacrificial zinc diodes (one on the front case and the other on the rear) to prevent electrolysis damage.
- Built-in leak sensor immediately alerts you to water ingress.
- Tripod screw mount is located on the center underside of the housing.
- Construction: Corrosion-resistant aluminum alloy (machined, anodized finish)
- Grip: Corrosion-resistant die-cast aluminum alloy
- Depth Rating: 100m/330ft
- Dimensions (WxHxD): 341 x 198 x 141mm /13.4 x 7.8 x 5.5 inches
- Weight (Approx.): 3,000g/106oz (Housing only)
