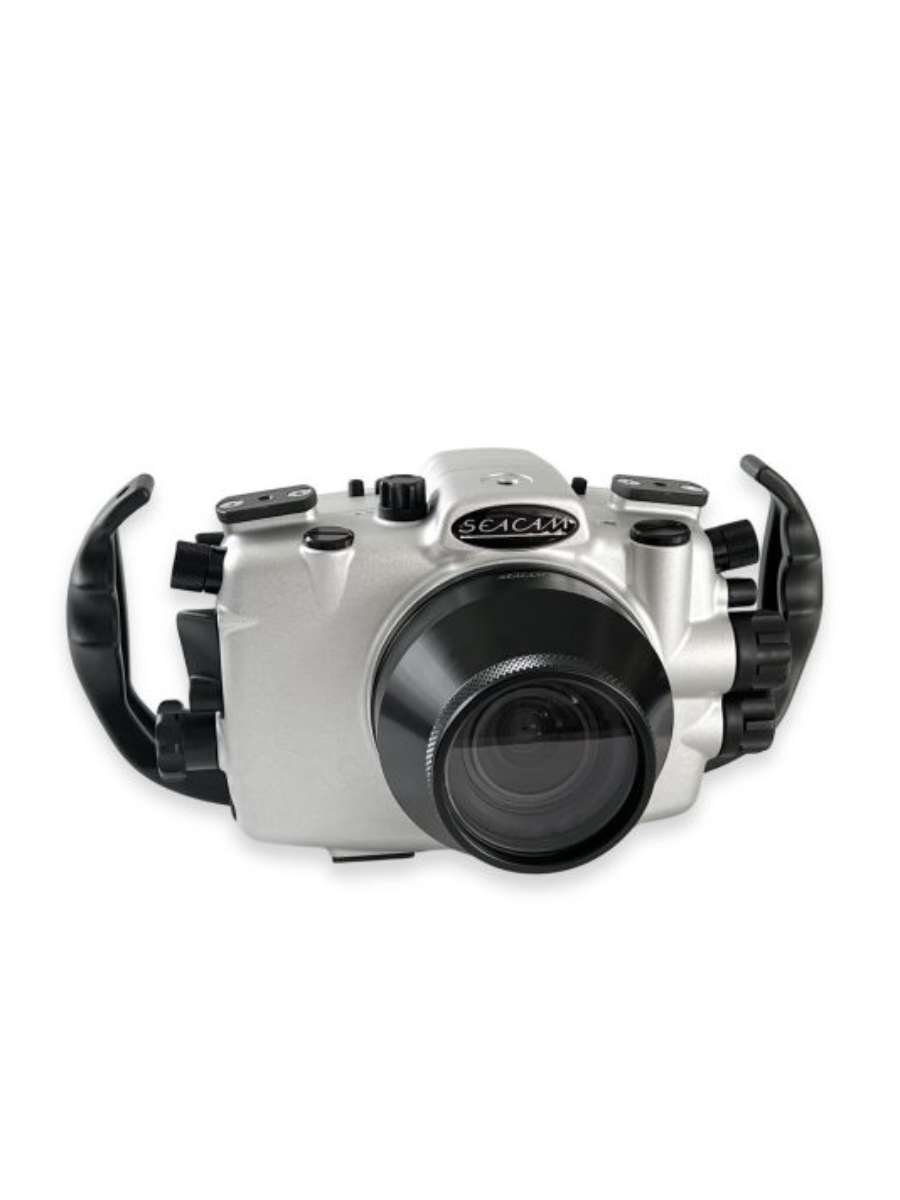

The lightest all-in-one cinema camera on the market, now available in SEACAM silver. Nikon developed this new and compact hybrid model in collaboration with RED—an exciting combination of Nikon's mirrorless hardware and all the advantages and features of RED software technology. The matching housing now takes cinema underwater, fully equipped and ready for every challenge.

Take a closer look at the Nikon | RED ZR housing here.

FUNCTIONS & TECHNICAL DATA

Knobs and Control Levers

• Shutter release / REC, main and sub-command dial, manual focus, zoom, lens release button, Photo / Film selector, and zoom control.

Push Buttons

• On/Off switch, multi selector, Menu, Fn1, Fn2, Fn3, and Play.

Data

• Clear LCD monitor window with removable sunshade.
• Two flash sockets (S6 or N5), two 25 mm flash arm T-pieces, M8 thread on both sides underneath the T-pieces, 3/8" tripod thread, and M8 thread on the housing top.
• Two removable handles and an optical-acoustic leak detector.
• Optional Remote, Power, HDMI socket, or vacuum test.
• Optional power bank with battery replacement possible while the camera is installed.
• Spare O-ring set, grease and maintenance oil, Allen key set, wrist strap in neoprene bag, protective caps, and manual.

SPECIFICATION

Dimensions

• 160 × 250 × 120 mm (without port, viewfinder, and handles)

Weight

• 2350 g (without port, viewfinder, and handles; neutral underwater depending on port and viewfinder)

Operation Depth

• 80 m / 260 ft
