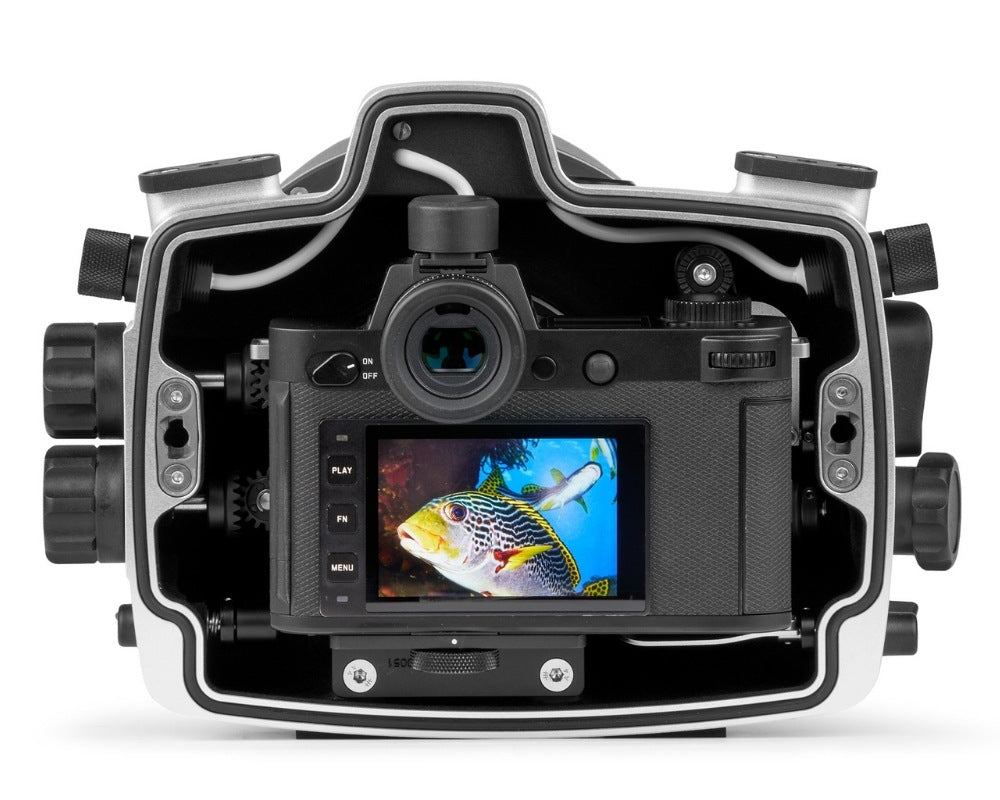

SEACAM UNDERWATER HOUSING FOR LEICA SL2 / SL2-S

SEACAM x LEICA – experience the extraordinary.

Passionate photographers know the SL2 and Sl2-S models as the ultimate tool. Starting now, we also offer a perfectly matched SEACAM silver housing with all functions and ergonomic features – a combination that ensures working with the Leica system is easy and effortless under water.
FUNCTIONS AND TECHNICAL DATA

Lenses

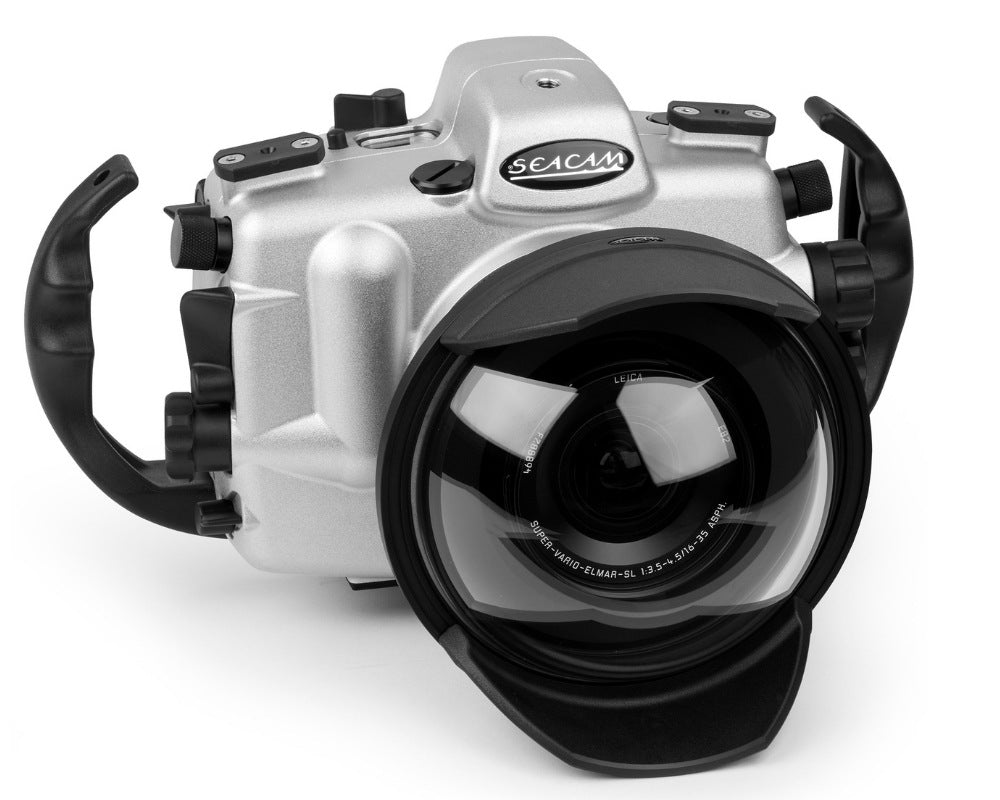

• We recommend using the Leica Super-Vario-Elmar-SL 1:3,5-4,5/16–35 ASPH with our SD Superdome Port and a PVL80 extension. More info about ports can be found here.

Knobs and control levers

• Power switch, shutter release for camera and video, front- and tumb dial, manual focus, zoom, lens release button, FN front (free), FN-back up (Monitor-viewfinder switch), FN-up / Joystick middle (ISO/AF-ON)

Push buttons

• Joystick, OK-button, PLAY-button, FN-button(free), MENU-button, FN-up (still/video).

Note: The (functions) of the FN keys in brackets refers to programming that we recommend.

Data

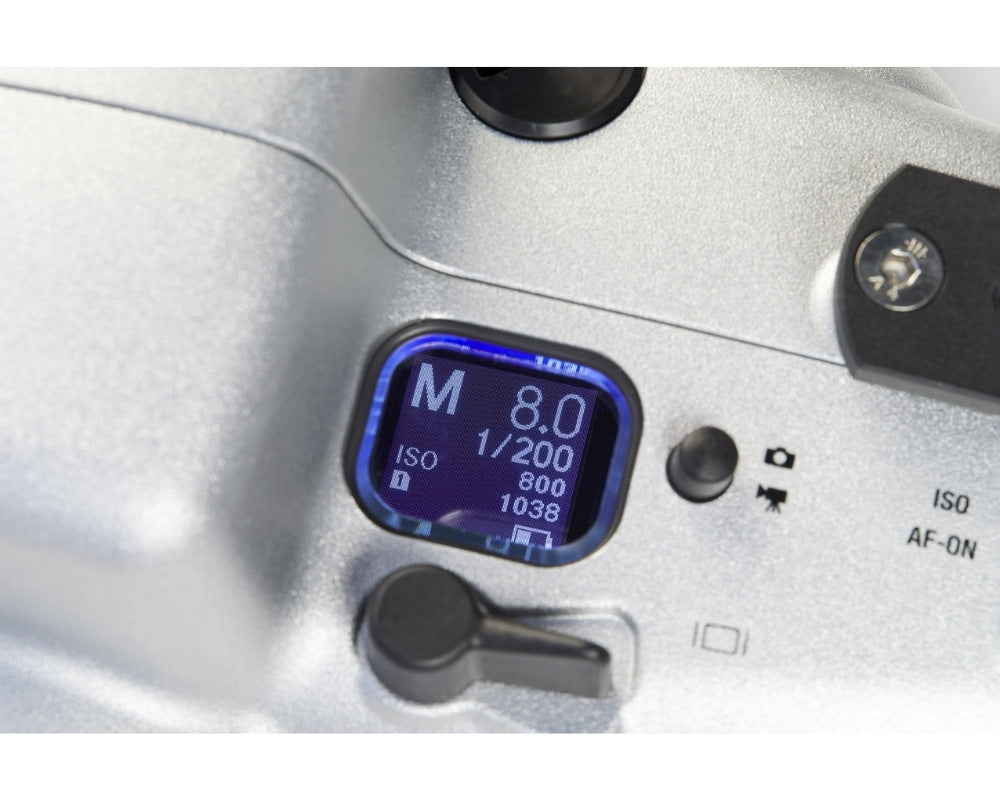

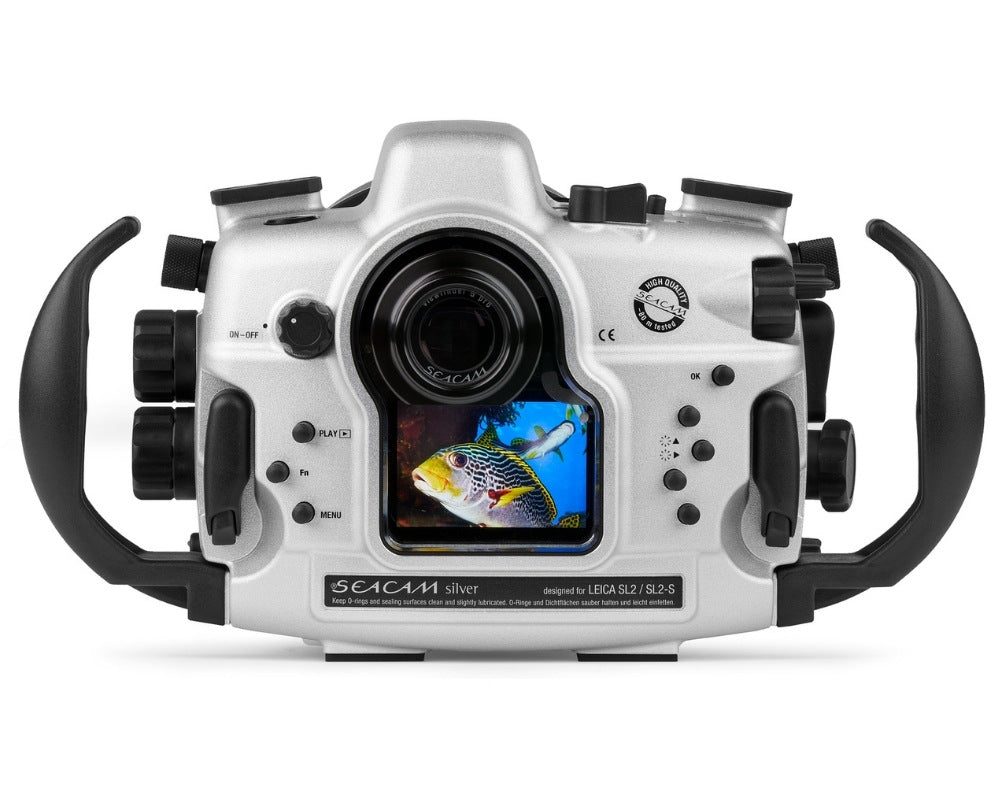

• Clear LCD monitor window and inclined, glare-free upper display window.
• 2 flash sockets S6 or N5, 2 flash arm T-pieces 25mm, tripod thread 3/8 ″, M8 thread on the housing top, 2 removable handles and optical-acoustic leak detector.
• HDMI socket and vacuum test optional
• Spare O-ring set, grease and maintenance oil, allen key set and wrist strap in neoprene bag, protective caps and manual.

SPECIFICATIONS:

• Dimensions: 260 x 190 x 130 mm without port, handles and viewfinder.
• Weight: 2350g without port and viewfinder, neutral under water depending on configuration.
• Operation depth: - 80m / - 260 ft. deeper operation depth upon request.
