USED GATES AX100 HOUSING FOR SONY FDR-AX100 & HDR-CX900



*Included:

  • 1x Gates AX100 Housing
  • 1x Wide Port GP34A
  • 1x FP34A Flat Port

The Gates AX100 combines UHD resolution with a platform dedicated to underwater motion imaging: Instant autofocus tracks subjects; an internal color correction flip filter; a big window for a clear view of the camera LCD viewfinder; compact, lightweight for travel; and an extraordinary 20MP still image capture.

Reaching the world's far corners, Gates housings are tasked with demanding projects extending from marine research and military to television and cinema productions. Experts know that failure is not an option, so they never take a chance.... they take Gates!

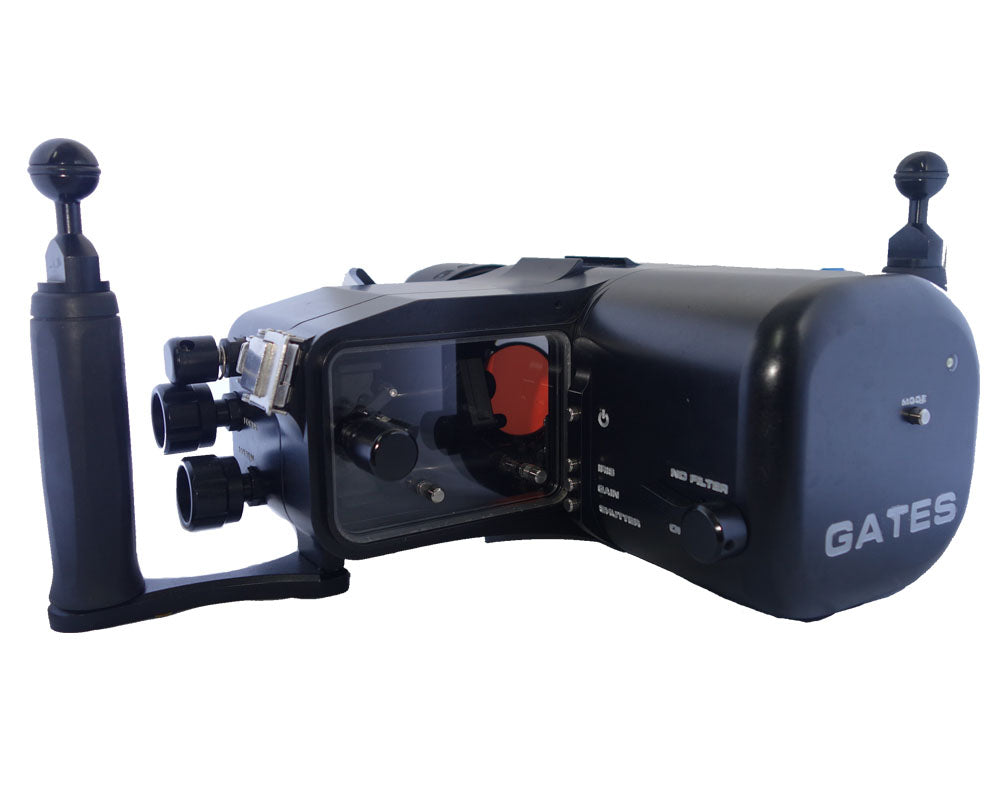

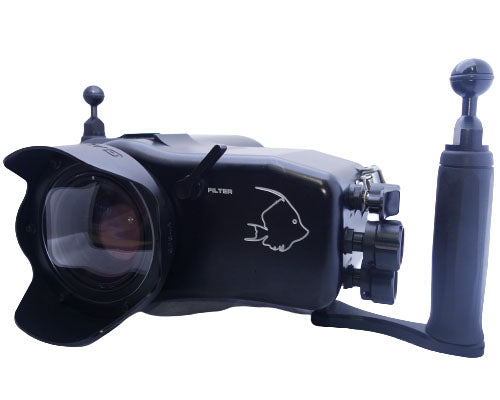

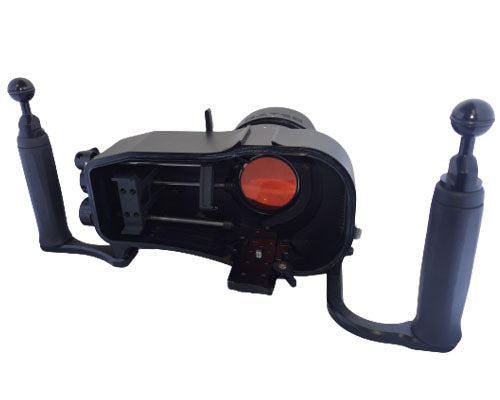

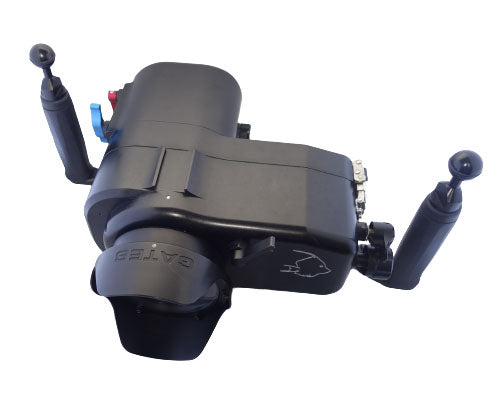

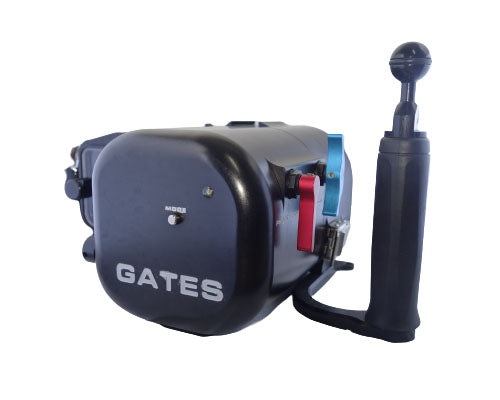

GATES AX100 HOUSING:

  • Ultra High Definition brings a new level of detail and clarity to your underwater images.
  • Simple, reliable fingertip controls.
  • Large side window to see the camera LCD, your big underwater viewfinder.
  • Accommodates all camera battery sizes for hours of recording.
  • Gates Precision Ports for no compromises image quality.
  • 2160/30P UHD and 1080/60P HD from a video-optimized CMOS sensor;
  • Instant Auto Focus tracking;
  • 120fps Slow-motion capabilities;
  • Steadyshot;
    • Focus Assist (Peaking)
    • ND Filters
  • XAVC and AVCHD recording modes up to 50 Mbps;

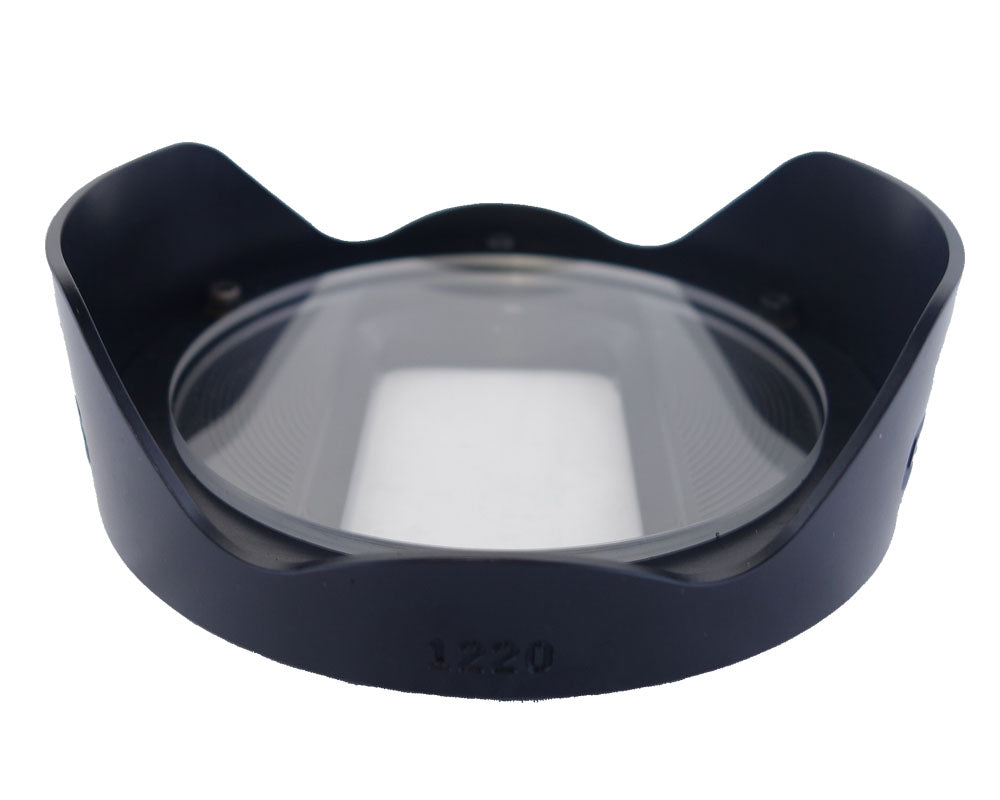

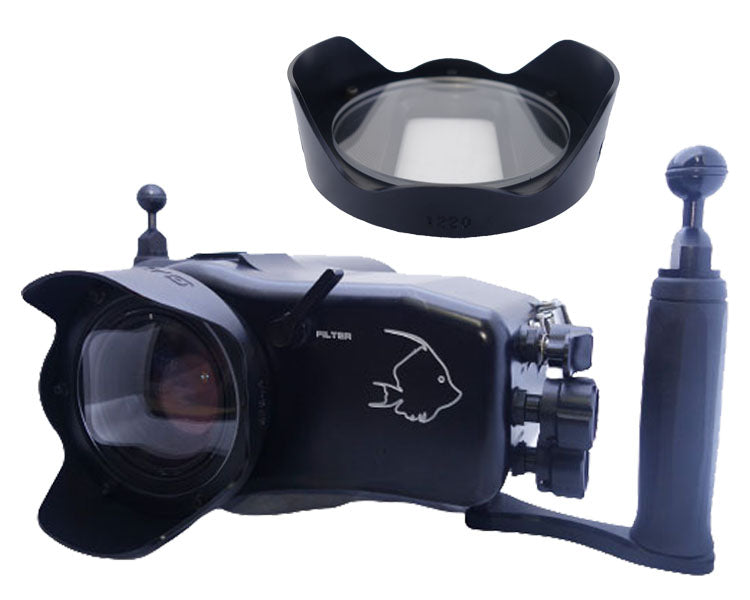

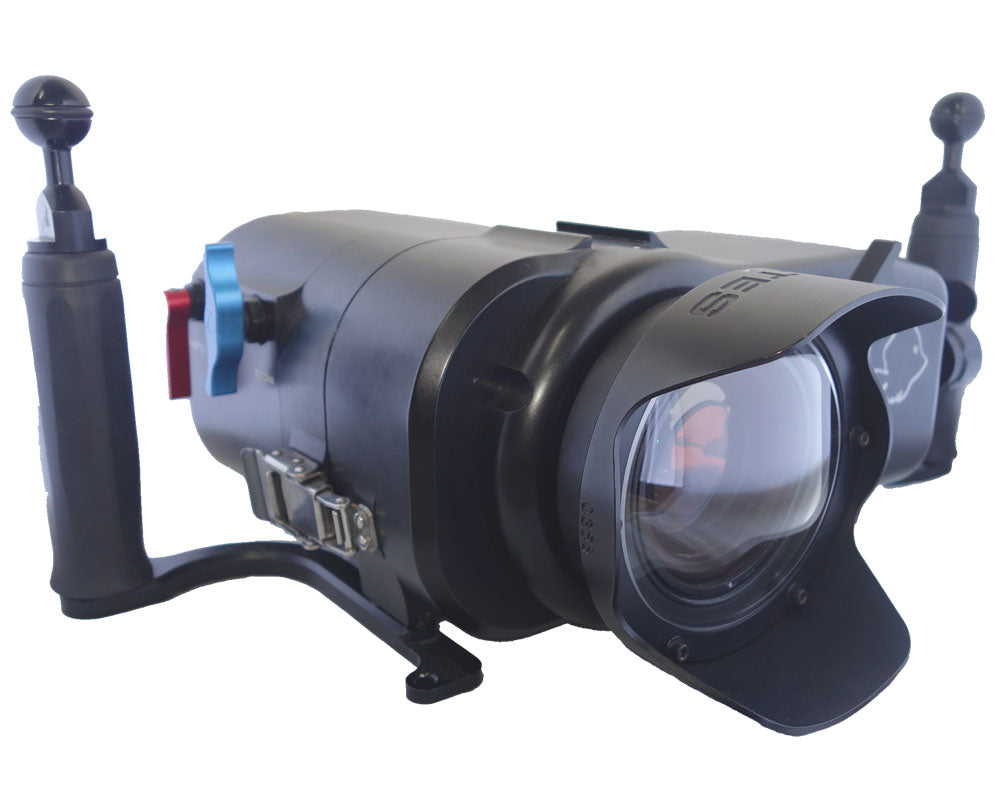

GATES GP34A WIDE-ANGLE PORT:

  • 100° WIDE-ANGLE IMAGING
    • At the wide end, the GP34A provides a 100° diagonal FOV with the AX100.
  • HIGH PERFORMANCE
    • From a 100° wide-angle to macro, the GP34A supports partial support of the AX100 camera zoom range.
  • TOUGH AND DURABLE
    • A workhorse port, the GP34A has an aluminum shell and acrylic outer dome. Depth rating 450' / 137m,
  • FIELD SERVICEABLE
    • Field Serviceable and replaceable dome element.



GATES GP34A WIDE-ANGLE PORT:

  • DOME MATERIAL: Acrylic / Perspex. Field serviceable/replaceable.
  • MAGNIFICATION / FIELD OF VIEW (FOV):8X / ~80-100° Field of View (Dependent on camera).
  • REPLACEABLE DOME SPHERICAL DIAMETER: 8in / 203mm.
  • DEPTH RATING: 450ft / 137m.

GATES FPGP34A FLAT PORT:

  • VERSATILE

The FP34A allows full camera zoom support for medium to macro imaging.

  • MACRO IMAGING

For tiny critters, the FP34A is perfect for use with close-up lenses like +1, +2, and +4 diopters.

  • FIELD SERVICEABLE

The FP34A element is user-changeable in the field.

  • DOME MATERIAL: Optical grade Acrylic / Perspex
  • MAGNIFICATION / FIELD OF VIEW (FOV): 8in / 71mm
  • OPTICAL NOTES: Flat ports reduce Field of View (FOV) by 20% underwater.
  • DEPTH RATING: 450ft / 137m.
